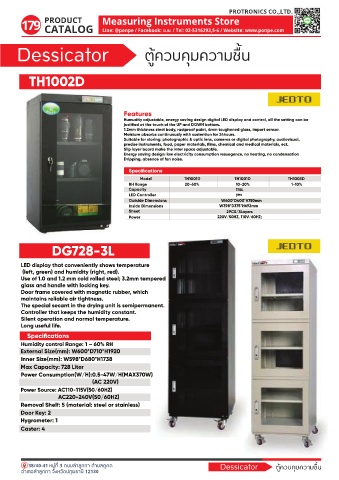

Page 188 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
179 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Dessicator ตู�ควบคุมความชื้น

TH1002D

Features
Humudity adjustable, energy saving design digital LED display and control, all the setting can be
justified at the touch of the UP and DOWN bottom.
1.2mm thickness steel body, rustproof paint, 4mm toughened glass, import sensor.
Moisture absorbs continuously with sustention for 24hours.
Suitable for storing: photographic & optic lens, cameras or digital photography, audiovisual,
precise instruments, food, paper materials, films, chemical and medical materials, ect.
Slip layer board make the inter space adjustable.
Energy saving design: low electricity consumption resuegence, no heating, no condensation
Dripping, absence of fan noise.

Specifications
Model TH1001D TH1001D TH1003D
RH Range 20-60% 10-20% 1-10%
Capacity 115L
LED Controller yes
Outside Dimensions W400*D400*H750mm
Inside Dimensions W398*D375*H692mm
Sheet 2PCS/3Layers
Power 220V/50HZ, 110V/60HZ;

DG728-3L

LED display that conveniently shows temperature
(left, green) and humidity (right, red).
Use of 1.0 and 1.2 mm cold rolled steel; 3.2mm tempered
glass and handle with locking key.
Door frame covered with magnetic rubber, which
maintains reliable air tightness.
The special secant in the drying unit is semipermanent.
Controller that keeps the humidity constant.
Silent operation and normal temperature.
Long useful life.
Specifications
Humidity control Range: 1 – 60% RH
External Size(mm): W600*D710*H1920
Inner Size(mm): W598*D680*H1738
Max Capacity: 728 Liter
Power Consumption(W/H):0.5-47W/H(MAX370W)
(AC 220V)
Power Source: AC110-115V(50/60HZ)
AC220-240V(50/60HZ)
Removal Shelf: 5 (material: steel or stainless)
Door Key: 2
Hygrometer: 1
Caster: 4
