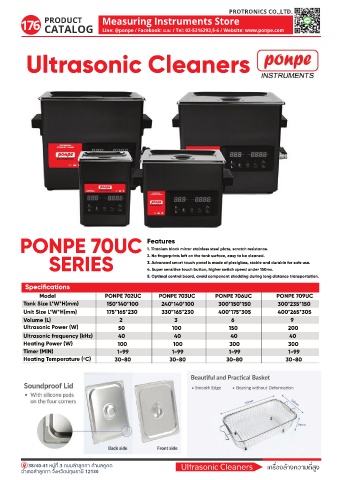

Page 185 - PONPE Catalogs 2022
P. 185
PROTRONICS CO.,LTD.
176 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com
เครื่องล�างความถี่สูง
Features
1. Titanium black mirror stainless steel plate, scratch resistance.
2. No fingerprints left on the tank surface, easy to be cleaned.
3. Advanced smart touch panel is made of plexiglass, stable and durable for safe use.
4. Super sensitive touch button, higher switch speed under 150ms.
5. Optimal control board, avoid component shedding during long distance transportation.
Specifications
Model PONPE 702UC PONPE 703UC PONPE 706UC PONPE 709UC
Tank Size L*W*H(mm) 150*140*100 240*140*100 300*150*150 300*235*150
Unit Size L*W*H(mm) 175*165*230 330*165*230 400*175*305 400*265*305
Volume (L) 2 3 6 9
Ultrasonic Power (W) 50 100 150 200
Ultrasonic frequency (kHz) 40 40 40 40
Heating Power (W) 100 100 300 300
Timer (MIN) 1-99 1-99 1-99 1-99
Heating Temperature (ºC) 30-80 30-80 30-80 30-80
38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องล�างความถี่สูง
