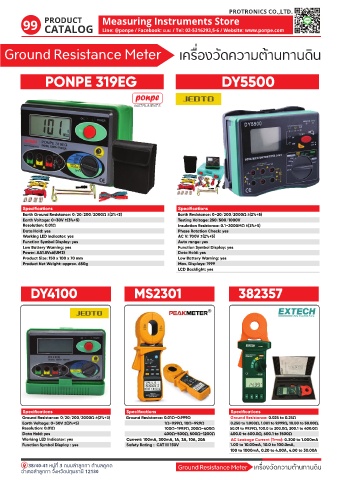

Ground Resistance Meter เครื่องวัดความต�านทานดิน

PONPE 319EG DY5500

Specifications Specifications
Earth Ground Resistance: 0/20/200/2000 ±(2%+3) Earth Resistance: 0~20/200/2000 ±(2%+5)
Earth Voltage: 0~30V ±(3%+5) Testing Voltage: 250/500/1000V
Resolution: 0.01 Insulation Resistance: 0.1~2000M ±(3%+5)
Data Hold: yes Phase Rotation Check: yes
Working LED Indicator: yes AC V: 700V ±(2%+5)
Function Symbol Display: yes Auto range: yes
Low Battery Warning: yes Function Symbol Display: yes
Power: AA1.5Vx6(UM3) Data Hold: yes
Product Size: 150 x 100 x 70 mm Low Battery Warning: yes
Product Net Weight: approx. 680g Max. Displays: 1999
LCD Backlight: yes

DY4100 MS2301 382357

Specifications Specifications Specifications
Ground Resistance: 0/20/200/2000 ±(2%+3) Ground Resistance: 0.01 ~0.999 Ground Resistance: 0.025 to 0.25
Earth Voltage: 0~30V ±(3%+5) 1 ~9.99 , 10 ~99.9 0.250 to 1.000 , 1.001 to 9.999 , 10.00 to 50.00 ,
Resolution: 0.01 100 ~199.9 , 200 ~400 50.01 to 99.99 , 100.0 to 200.0 , 200.1 to 400.0
Data Hold: yes 400 ~500 , 500 ~1200 400.0 to 600.0 , 600.1 to 1500
Working LED Indicator: yes Current: 100mA, 300mA, 1A, 3A, 10A, 20A AC Leakage Current (Trms): 0.300 to 1.000mA
Function Symbol Display : yes Safety Rating : CAT III 150V 1.00 to 10.00mA, 10.0 to 100.0mA,
100 to 1000mA, 0.20 to 4.00A, 4.00 to 30.00A
