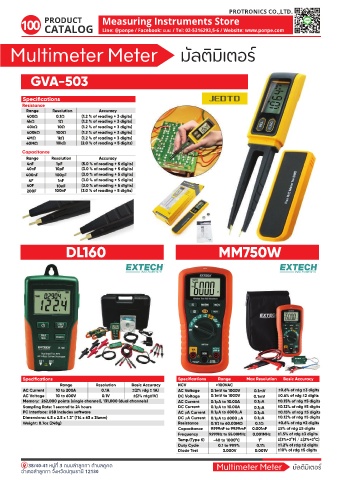

Multimeter Meter มัลติมิเตอร�

GVA-503

Specifications
Resistance
Range Resolution Accuracy
400 0.1 (1.2 % of reading + 3 digits)
4k 1 (1.2 % of reading + 3 digits)
40k 10 (1.2 % of reading + 3 digits)
400k 100 (1.2 % of reading + 3 digits)
4M 1k (1.2 % of reading + 3 digits)
10k (2.0 % of reading + 5 digits)
Capacitance
Range Resolution Accuracy
4nF 1pF (5.0 % of reading + 5 digits)
40nF 10pF (3.0 % of reading + 5 digits)
400nF 100pF (3.0 % of reading + 5 digits)
4F 1nF (3.0 % of reading + 5 digits)
40F 10nF (3.0 % of reading + 5 digits)
200F 100nF (3.0 % of reading + 5 digits)

DL160 MM750W

Specifications Specifications Range Max Resolution Basic Accuracy
Range Resolution Basic Accuracy NCV >100VAC
AC Current 10 to 200A 0.1A ±(2% rdg ± 1A) AC Voltage 0.1mV to 1000V 0.1mV ±0.6% of rdg ±3 digits
AC Voltage 10 to 600V 0.1V ±(2% rdg±1V) DC Voltage 0.1mV to 1000V 0.1mV ±0.6% of rdg ±2 digits
Memory: 262,000 points (single channel), 131,000 (dual channels) AC Current 0.1 A to 10.00A 0.1 A ±0.15% of rdg ±5 digits
Sampling Rate: 1 second to 24 hours DC Current 0.1 A to 10.00A 0.1 A ±0.12% of rdg ±5 digits
PC Interface: USB includes software AC A Current 0.1 A to 6000 A 0.1 A ±0.15% of rdg ±5 digits
Dimensions: 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) DC A Current 0.1 A to 6000 A 0.1 A ±0.12% of rdg ±5 digits
Weight: 8.7oz (248g) Resistance 0.1 to 60.00M 0.1 ±0.6% of rdg ±2 digits
Capacitance 9.999nF to 99.99mF 0.001nF ±5% of rdg ±5 digits
Frequency 9.999Hz to 55.00MHz 0.001MHz ±1.5% of rdg ±3 digits
Temp.(Type K) -40 to 1000°C 1° ±(2%+2°F) / ±(2%+2°C)
Duty Cycle 0.1 to 99.9% 0.1% ±1.2% of rdg ±2 digits
Diode Test 3.000V 0.001V ±10% of rdg ±5 digits
