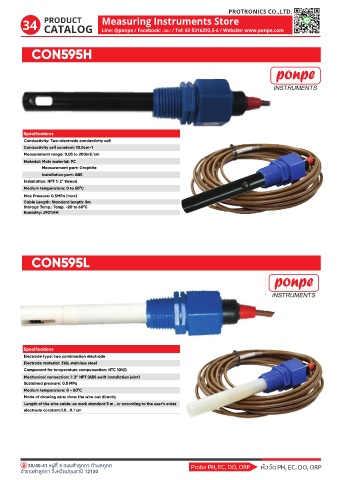

Page 37 - PONPE INSTRUMENTS
P. 37

PROTRONICS CO.,LTD.
         34                          Measuring Instruments Store
                                     Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com


            CON595H

















         Specifications
         Conductivity: Two-electrode conductivity cell
         Conductivity cell constant: 10.0cm-1
         Measurement range: 0.05 to 200mS/cm
         Material: Main material: PC
                Measurement part: Graphite
                Installation part: ABS
         Installation: NPT 1/2" thread
         Medium temperature: 0 to 50°C
         Max Pressure: 0.5MPa (max)
         Cable Length: Standard length: 5m
         Storage Temp.: Temp. -20 to 60°C
         Humidity: ≤90%RH








            CON595L


















         Specifications
         Electrode type: two combination electrode
         Electrode material: 316L stainless steel
         Component for temperature compensation: NTC 10K
         Mechanical connection: 1/2” NPT (ABS swift installation joint)
         Sustained pressure: 0.5 MPa
         Medium temperature: 0 - 50°C
         Mode of drawing wire: draw the wire out directly
          Length of the wire cable: ex work standard 5 m , or according to the user’s order
         electrode constant:1.0 , 0.1 cm

 or ORP meters







              38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
         ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130                                                  หัววัด PH, EC, DO, ORP
   32   33   34   35   36   37   38   39   40   41   42
