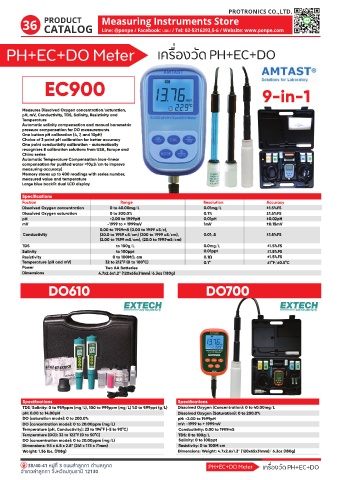

Page 39 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
36 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PH+EC+DO Meter เครื่องวัด PH+EC+DO

EC900 9-in-1

Measures Dissolved Oxygen concentration/saturation,
pH, mV, Conductivity, TDS, Salinity, Resistivity and
Temperature
Automatic salinity compensation and manual barometric
pressure compensation for DO measurements
One button pH calibration (4, 7, and 10pH)
Choice of 3 point pH calibration for better accuracy
One point conductivity calibration - automatically
recognizes 8 calibration solutions from USA, Europe and
China series
Automatic Temperature Compensation (non-linear
compensation for purified water <10 S/cm to improve
measuring accuracy)
Memory stores up to 400 readings with series number,
measured value and temperature
Large blue backlit dual LCD display
Specifications
Fuction Range Resolution Accuracy
Dissolved Oxygen concentration 0 to 40.00mg/L 0.01mg/L ±1.5%FS
Dissolved Oxygen saturation 0 to 200.0% 0.1% ±1.5%FS
pH -2.00 to 19.99pH 0.01pH ±0.02pH
mV -1999 to + 1999mV 1mV ±0.15mV
0.00 to 199.9mS (0.00 to 19.99 uS/c),
Conductivity (20.0 to 199.9 uS/cm) (200 to 1999 uS/cm), 0.01 S ±1.5%FS
(2.00 to 19.99 mS/cm), (20.0 to 199.9mS/cm)
TDS to 100g/L 0.0mg/L ±1.5%FS
Salinity to 100ppt 0.01ppt ±1.5%FS
Resistivity 0 to 100M . cm 0.1 ±1.5%FS
Temperature (pH and mV) 32 to 212°F (0 to 100°C) 0.1° ±1°F/±0.5°C
Power Two AA Batteries
Dimensions 4.7x2.6x1.2" (120x65x31mm)/6.3oz (180g)

DO610 DO700

Specifications Specifications
TDS/Salinity: 0 to 99.9ppm (mg/L), 100 to 999ppm (mg/L) 1.0 to 9.99ppt (g/L) Dissolved Oxygen (Concentration): 0 to 40.00mg/L
pH: 0.00 to 14.00pH Dissolved Oxygen (Saturation): 0 to 200.0%
DO (saturation mode): 0 to 200.0% pH: -2.00 to 19.99pH
DO (concentration mode): 0 to 20.00ppm (mg/L) mV: -1999 to + 1999mV
Temperature (pH, Conductivity): 23 to 194°F (-5 to 90°C) Conductivity: 0.00 to 199.9mS
Temperature (DO): 32 to 122°F (0 to 50°C) TDS: 0 to 100g/L
DO (concentration mode): 0 to 20.00ppm (mg/L) Salinity: 0 to 100ppt
Dimensions: 9.5 x 6.8 x 2.8" (241 x 173 x 71mm) Resistivity: 0 to 100M cm
Weight: 1.56 lbs. (708g) Dimensions/Weight: 4.7x2.6x1.2" (120x65x31mm)/ 6.3oz (180g)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัด PH+EC+DO
