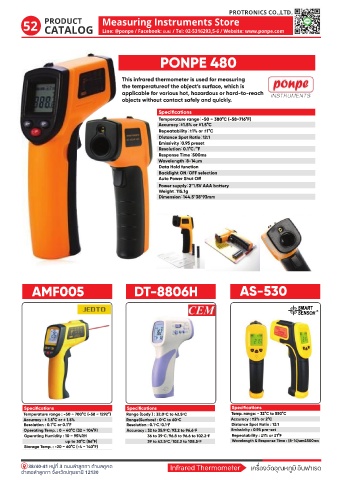

PONPE 480

This infrared thermometer is used for measuring
the temperatureof the object’s surface, which is
applicable for various hot, hazardous or hard-to-reach
objects without contact safely and quickly.

Specifications
Temperature rangeɿ-50 ~ 380°C (-58~716°F)
Accuracyɿ±1.5% or ±1.5°C
Repeatabilityɿ±1% or ±1°C
Distance Spot Ratioɿ12:1
Emissivityɿ0.95 preset
Resolutionɿ0.1°C/°F
Response Timeɿ500ms
Wavelengthɿ8-14μm
Data Hold function
Backlight ON/OFF selection
Auto Power Shut Off
Power supplyɿ2*1.5V AAA battery
Weightɿ115.1g
Dimensionɿ144.5*38*93mm

AMF005 DT-8806H AS-530

Specifications Specifications Specifications
Temperature range : -50 ~ 700°C (-58 ~ 1292°) Range (body ) : 32.0ºC to 42.5ºC Temp. range: - 32°C to 550°C
Accuracy : ± 1.5°C or ± 1.5% Range(Surface) : 0ºC to 60ºC Accuracy : ±2% or 2°C
Resolution : 0.1°C or 0.1°F Resolution : 0.1ºC/0.1ºF Distance Spot Ratio : 12:1
Operating Temp. : 0 ~ 40°C (32 ~ 104°F) Accuracy : 32 to 35.9ºC/93.2 to 96.6ºF Emissivity : 0.95 pre-set
Operating Humidity : 10 ~ 95%RH 36 to 39ºC/96.8 to 96.6 to 102.2ºF Repeatability : ±1% or ±1°F
up to 30°C (86°F) 39 to 42.5ºC/102.2 to 108.5ºF Wavelength & Response Time : (8-14)um&500ms
Storage Temp. : -20 ~ 60°C (-4 ~ 140°F)
