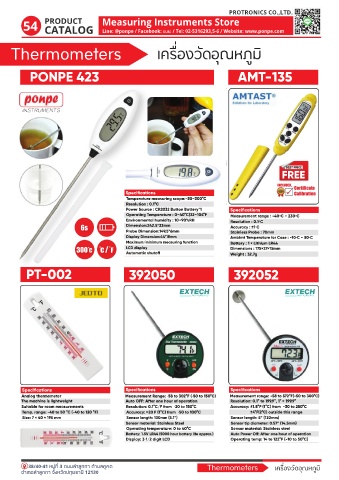

Thermometers เครื่องวัดอุณหภูมิ

PONPE 423 AMT-135

BEST PRICE

Specifications
Temperature measuring scope:-50~300°C
Resolution : 0.1°C
Power Source : CR2032 Button Battery*1 Specifications
Operating Temperature : 0~40°C(32~104°F Measurement range : -40ºC ~ 230ºC
Environmental humidity : 10~90%RH Resolution : 0.1ºC
Dimension:242.5*33mm Accuracy : ±1ºC
Probe Dimension:149.5*6mm Stainless Probe : 70mm
Display Dimension:44*18mm Ambirnt Temperature for Case : -10ºC ~ 50ºC
Maximum/minimum measuring function Battery : 1 × Lithium LR44
LCD display Dimensions : 175×27×15mm
Automatic shutoff Weight : 32.7g

PT-002 392050 392052

Specifications Specifications Specifications
Analog thermometer Measurement Range: ‐58 to 302°F (‐50 to 150°C) Measurement range: -58 to 572°F(-50 to 300°C)
The machine is lightweight Auto OFF: After one hour of operation Resolution: 0.1° to 199.9°, 1° > 199.9°
Suitable for room measurements Resolution: 0.1°C/F from ‐20 to 150°C Accuracy: ±1.8°F (1°C) from -30 to 250°C
Temp. range: -40 to 50 °C (-40 to 120 °F) Accuracy: >20 F (1°C) from ‐50 to 100°C ±4°F(2°C) outside this range
Size: 7 × 40 × 195 mm Sensor length: 130mm (5.1”) Sensor length: 5” (130mm)
Sensor material: Stainless Steel Sensor tip diameter: 0.57” (14.5mm)
Operating temperature: 0 to 40°C Sensor material: Stainless steel
Battery: 1.5V LR44 (5000 hour battery life approx.) Auto Power Off: After one hour of operation
Display: 3‐1/2 digit LCD Operating temp: 14 to 122°F (-10 to 50°C)
