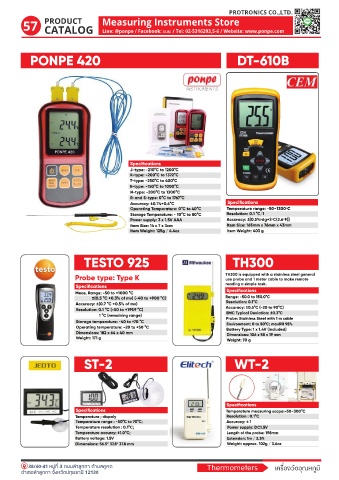

Page 60 - PONPE INSTRUMENTS
P. 60
PROTRONICS CO.,LTD.
57 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com
PONPE 420 DT-610B
Specifications
J-type: -210°C to 1200°C
K-type: -200°C to 1372°C
T-type: -250°C to 400°C
E-type: -150°C to 1000°C
N-type: -200°C to 1300°C
R-and S-type: 0°C to 1767°C
Accuracy: ±0.1%+0.6°C Specifications
Operating Temperature: 0°C to 40°C Temperature range: -50~1300ºC
Storage Temperature: - 10°C to 50°C Resolution: 0.1 °C/1
Power supply: 3 x 1.5V AAA Accuracy: ±[0.5%rdg+2ºC(3.6ºF)]
Item Size: 14 x 7 x 3cm Item Size: 165mm x 76mm x 43mm
Item Weight: 125g / 4.4oz Item Weight: 403 g
TESTO 925 TH300
TH300 is equipped with a stainless steel general
use probe and 1 meter cable to make remote
reading a simple task.
Specifications
Specifications
Meas. Range: -50 to +1000 °C
±(0.5 °C +0.3% of mv) (-40 to +900 °C) Range: -50.0 to 150.0°C
Accuracy: ±(0.7 °C +0.5% of mv) Resolution: 0.1°C
Accuracy: ±0.5°C (-20 to 90°C)
Resolution: 0.1 °C (-50 to +199.9 °C)
EMC Typical Deviation: ±0.3°C
1 °C (remaining range)
Probe: Stainless Steel with 1 m cable
Storage temperature: -40 to +70 °C Environment: 0 to 50°C; maxRH 95%
Operating temperature: -20 to +50 °C Battery Type: 1 x 1.4V (included)
Dimensions: 182 x 64 x 40 mm Dimensions: 106 x 58 x 19 mm
Weight: 171 g
Weight: 70 g
ST-2 WT-2
Specifications
Specifications Temperature measuring scope:-50~300°C
Temperature ; dispaly Resolution : 0.1°C
Temperature range : -50°C to 70°C; Accuracy: ± 1
Temperature resolution : 0.1°C; Power supply: DC1.5V
Temperature accurcy: ±1.0°C; Length of the probe: 198mm
Battery voltage: 1.5V Extension: 1m / 3.3ft
Dimensions: 56.5* 37.8* 37.8 mm Weight: approx. 102g / 3.6oz
38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ เครื่องวัดอุณหภูม ิ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
