PROTRONICS CO.,LTD.

76 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

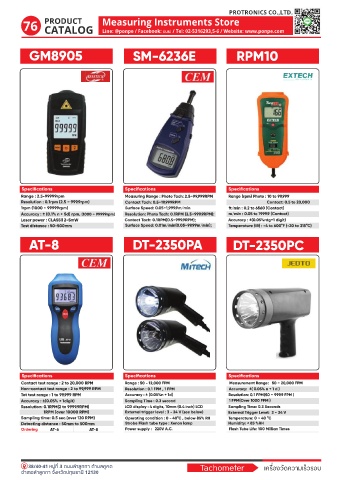

GM8905 SM-6236E RPM10

Specifications Specifications Specifications
Range : 2.5-99999rpm Measuring Range : Photo Tach: 2.5~99,999RPM Range (rpm) Photo : 10 to 99,999
Resolution : 0.1rpm (2.5 ~ 999.9rpm) Contact Tach: 0.5~19,999RPM Contact: 0.5 to 20,000
1rpm (1000 ~ 99999rpm) Surface Speed: 0.05~1,999.9m/min ft/min : 0.2 to 6560 (Contact)
Accuracy : ± (0.1% n + 5d) rpm, (1000 ~ 99999rpm) Resolution: Photo Tach: 0.1RPM (2.5~999.9RPM): m/min : 0.05 to 1999.9 (Contact)
Laser power : CLASSll 2-5mW Contact Tach: 0.1RPM(0.5~999.9RPM); Accuracy : ±(0.05%rdg+1 digit)
Test distance : 50-500mm Surface Speed: 0.01m/min(0.05~99.99m/min); Temperature (IR) : -4 to 600°F (-20 to 315°C)

AT-8 DT-2350PA DT-2350PC

Specifications Specifications Specifications
Contact test range : 2 to 20,000 RPM Range : 50 - 12,000 FPM Measurement Range: 50 ~ 20,000 FPM
Non-contact test range : 2 to 99,999 RPM Resolution : 0.1 FPM , 1 FPM Accuracy: ±( 0.05% n + 1 d )
Tot test range : 1 to 99,999 RPM Accuracy : ± (0.05%n + 1d) Resolution: 0.1 FPM(50 ~ 999.9 FPM )
Accuracy : ±(0.05% + 1digit) Sampling Time : 0.3 second 1 FPM(Over 1000 FPM )
Resolution: 0.1RPM(2 to 9999.9RPM) LCD display : 4 digits, 10mm (0.4 inch) LCD Sampling Time: 0.3 Seconds
1RPM (over 10000 RPM) External trigger level : 3 - 24 V (see below) External Trigger Level: 3 ~ 24 V
Sampling time: 0.5 sec.(over 120 RPM) Operating condition : 0 - 40°C , below 85% RH Temperature: 0 ~ 40 °C
Detecting distance : 50mm to 500mm Strobe Flash tube type : Xenon lamp Humidity: < 85 %RH
Ordering AT-6 AT-8 Power supply : 220V A.C. Flash Tube Life: 100 Millian Times
