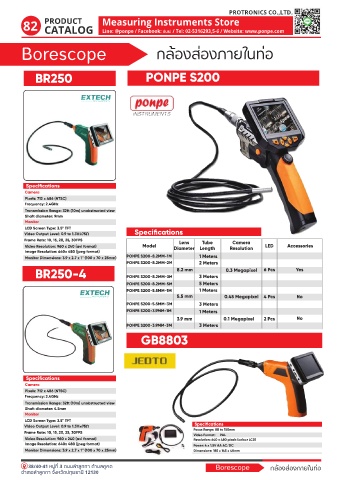

Page 85 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

82 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Borescope กล�องส�องภายในท�อ

BR250 PONPE S200

Specifications
Camera
Pixels: 712 x 486 (NTSC)
Frequency: 2.4GHz
Transmission Range: 32ft (10m) unobstructed view
Shaft diameter: 9mm
Monitor
LCD Screen Type: 3.5" TFT
Video Output Level: 0.9 to 1.3V@75Ω Specifications
Frame Rate: 10, 15, 20, 25, 30FPS Lens Tube Camera
Video Resolution: 960 x 240 (avi format) Model Diameter Length Resolution LED Accessories
Image Resolution: 640x 480 (jpeg format)
Monitor Dimensions: 3.9 x 2.7 x 1" (100 x 70 x 25mm) PONPE S200-8.2MM-1M 1 Meters
PONPE S200-8.2MM-2M 2 Meters
BR250-4 PONPE S200-8.2MM-3M 8.2 mm 3 Meters 0.3 Megapixel 6 Pcs Yes

PONPE S200-8.2MM-5M 5 Meters
PONPE S200-5.5MM-1M 1 Meters
5.5 mm 0.45 Megapixel 4 Pcs No
PONPE S200-5.5MM-3M 3 Meters
PONPE S200-3.9MM-1M 1 Meters
3.9 mm 0.1 Megapixel 2 Pcs No
PONPE S200-3.9MM-3M 3 Meters
GB8803

Specifications
Camera
Pixels: 712 x 486 (NTSC)
Frequency: 2.4GHz
Transmission Range: 32ft (10m) unobstructed view
Shaft diameter: 4.5mm
Monitor
LCD Screen Type: 3.5" TFT
Video Output Level: 0.9 to 1.3V@75Ω Specifications
Focus Range: 80 to 150mm
Frame Rate: 10, 15, 20, 25, 30FPS
Video Format: PAL
Video Resolution: 960 x 240 (avi format) Resolution: 640 x 480 pixels (colour LCD)
Image Resolution: 640x 480 (jpeg format) Power: 4 x 1.5V AA AC/DC
Monitor Dimensions: 3.9 x 2.7 x 1" (100 x 70 x 25mm) Dimensions: 185 x 145 x 40mm
