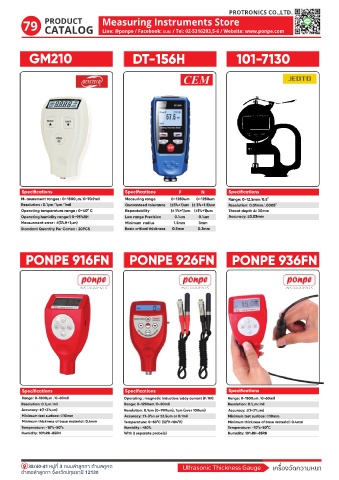

Page 82 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

79 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

GM210 DT-156H 101-7130

Specifications Specifications F N Specifications
N
Measurement ranges : 0~1800μm/0~70.9mil Measuring range 0~1250um 0~1250um Range: 0-12.5mm/0.5″
Resolution : 0.1μm/1μm/1mil Guaranteed tolerance (±3%+1)um (± 3%+1.5)um Resolution: 0.01mm/.0005″
Operating temperature range : 0~40° C Repeatability (± 1%+1)um (±1%+1)um Throat depth A: 30mm
Operating humidity range:1 0~95%RH Low range Precision 0.1um 0.1um Accuracy: ±0.03mm
Measurment error : ±(3%H+1μm) Minimum radius 1.5mm 3mm
Standard Quantity Per Carton : 20PCS Basic critical thickness 0.5mm 0.3mm

PONPE 916FN PONPE 926FN PONPE 936FN

Specifications Specifications Specifications
Range: 0-1500μm /0-60mil Operating : magnetic induction/eddy current (F/NF) Range: 0-1500μm /0-60mil
Resolution: 0.1μm/mil Range: 0-1250um/0-50mil Resolution: 0.1μm/mil
Accuracy: ±(1+2%μm) Resolution: 0.1um (0~99.9um), 1um (over 100um) Accuracy: ±(1+2%μm)
Minimum test surface: Φ10mm Accuracy: ±1-3%n or ±2.5um or 0.1mil Minimum test surface: Φ10mm
Minimum thickness of base material: 0.4mm Temperature: 0~50°C (32°F-104°F) Minimum thickness of base material: 0.4mm
Temperature: -10°c-50°c Humidity : <80% Temperature: -10°c-50°C
Humidity: 10%RH-85RH With 2 separate probe(s) Humidity: 10%RH-85RH

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ เครื่องวัดความหนา
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
