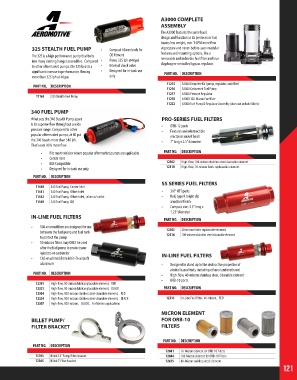

Page 121 - 2018 Master Catalog

A3000 COMPLETE
ASSEMBLY
The A3000 features the same basic
design and function as its predecessor but
boasts less weight, over 1 GPM more flow
325 STEALTH FUEL PUMP • Compact 65mm body for at pressure and never-before-seen modular
The 325 is a high performance pump that bolts OE fitment features and mounting options, like a
removable and indexible fuel filter and true
into many existing hanger assemblies. Compared • Flows 325 lph @40 psi
to other aftermarket pumps, the 325 boasts a • Internal check valve diaphragm-controlled bypass regulator.
significant increase in performance, flowing • Designed for in-tank use PART NO. DESCRIPTION
more than 325 lph at 40 psi. only
11215 A3000 Complete Kit (pump, regulator, and filter)
PART NO. DESCRIPTION
11216 A3000 Carbureted Fuel Pump
11217 A3000 Pressure Regulator
11165 325 Stealth Fuel Pump
11218 A3000 100-Micron Fuel Fiter
11222 A3000 Fuel Pump & Regulator Assembly (does not include filter)v
340 FUEL PUMP
What sets the 340 Stealth Pump apart PRO-SERIES FUEL FILTERS
is its superior flow throughout a wide • ORB-12 ports
pressure range. Compared to other • Features an indestructible
popular aftermarket pumps, at 40 psi electoless nickel finish
the 340 boasts more than 340 lph. • 7” long x 2.5” diameter
That’s over 30% more flow.
• Fits most vehicles where popular aftermarket pumps are applicable PART NO. DESCRIPTION
• Center inlet
• E85 Compatible 12302 High-flow, 100-micron stainless steel cleanable element
• Designed for in-tank use only 12310 High-flow, 10-micron fabric replaceable element
PART NO. DESCRIPTION
SS SERIES FUEL FILTERS
11540 340 Fuel Pump, Center-Inlet
11541 340 Fuel Pump, Offset-Inlet • 3/8” NPT ports
11542 340 Fuel Pump, Offset-Inlet, inline w/ outlet • Red, type II bright dip
11569 340 Fuel Pump, GM anodized finish
• Compact size: 3.5” long x
1.25” diameter
IN-LINE FUEL FILTERS PART NO. DESCRIPTION

• 100-micron filters are designed for use
between the fuel pump and fuel tank 12303 40-micron fabric replaceable element
to protect the pump 12316 100-micron stainless steel cleanable element
• 10-micron filters may ONLY be used
after the fuel pump to protect your
injectors or carburetor
• CNC-machined from 6061-T6 aircraft IN-LINE FUEL FILTERS
aluminum • Designed to stand up to the destructive properties of
alcohol based fuels, including ethanol and methanol
PART NO. DESCRIPTION • High-flow, 40-micron stainless steel, cleanable element
• ORB-10 ports.
12301 High-flow, 10-micron fabric replaceable element, RED
12321 High-flow, 10-micron fabric replaceable element, BLACK PART NO. DESCRIPTION
12304 High-flow, 100-micron stainless steel cleanable element, RED
12324 High-flow, 100-micron stainless steel cleanable element, BLACK 12335 In-Line Fuel Filter, 40-micron, RED
12307 High-flow, 100-micron, BLACK, For Marine applications
MICRON ELEMENT
BILLET PUMP/ FOR ORB-10
FILTER BRACKET FILTERS

PART NO. DESCRIPTION
PART NO. DESCRIPTION
12601 10-Micron element for ORB-10 Filters
11703 Billet 2.5” Pump/Filter bracket 12604 100-Micron element for ORB-10 Filters
12305 Billet 2” Filter bracket 12635 40-Micron stainless steel element
121
