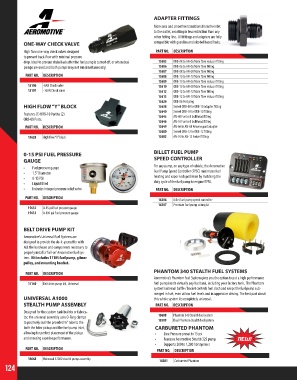

Page 124 - 2018 Master Catalog

ADAPTER FITTINGS
More area and smoother transitions from the inlet
to the outlet, resulting in less restriction than any
other fitting line. All fittings and adapters are fully
ONE-WAY CHECK VALVE compatible with gasoline and alcohol based fuels.

High flow one-way check valves designed PART NO. DESCRIPTION
to prevent back-flow with minimal pressure
drop. Ideal to prevent drain back after the fuel pump is turned off, or when dual 15605 ORB-08 to AN-06 Male flare reducer fitting
pumps are used and both pumps may not run simultaneously. 15606 ORB-06 to AN-06 Male flare fitting
15607 ORB-08 to AN-08 Male flare fitting
PART NO. DESCRIPTION 15608 ORB-10 to AN-10 Male flare fitting
15609 ORB-10 to AN-06 Male flare reducer fitting
15106 -6AN Check valve 15610 ORB-10 to AN-08 Male flare reducer fitting
15107 -10AN Check valve 15612 ORB-12 to AN-12 Male flare fitting
15613 ORB-12 to AN-10 Male flare reducer fitting
15626 ORB-06 Port plug
HIGH FLOW “Y” BLOCK 15638 Swivel ORB-08 to ORB-10 adapter fitting
15640 Swivel ORB-10 to ORB-10 fitting
Features (1) ORB-10 Port to (2)
ORB-08 Ports. 15645 AN-08 Fuel cell bulkhead fitting
15646 AN-10 Fuel cell bulkhead fitting
PART NO. DESCRIPTION 15649 AN-06 to AN-08 Reverse port adapter
15680 Swivel ORB-12 to ORB-12 fitting
15620 High flow “Y” block 15682 AN-10 to AN-12 Swivel fitting

0-15 PSI FUEL PRESSURE BILLET FUEL PUMP
GAUGE SPEED CONTROLLER
• Fuel pressure gauge For any pump, on any type of vehicle, the Aeromotive
• 1.5” Diameter Fuel Pump Speed Controller (FPSC) minimizes fuel
• 0-15 PSI heating and vapor-lock problems by matching the
• Liquid filled duty cycle of the fuel pump to engine RPM.
• Includes integral pressure relief valve PART NO. DESCRIPTION
PART NO. DESCRIPTION 16306 Billet fuel pump speed controller
16307 Premium fuel pump wiring kit
15632 0-15 psi Fuel pressure gauge
15633 0-100 psi Fuel pressure gauge

BELT DRIVE PUMP KIT
Aeromotive’s Universal Fuel Systems are
designed to provide the do-it-yourselfer with
ALL the hardware and components necessary to
properly install a ‘full-on’ Aeromotive fuel sys-
tem. Kit includes 11105 fuel pump, gilmer
pulley, and mounting bracket.
PHANTOM 340 STEALTH FUEL SYSTEMS
PART NO. DESCRIPTION
Aeromotive’s Phantom Fuel System gives you the option to put a high performance
17140 Belt drive pump kit, Universal fuel pump inside virtually any fuel tank, including your factory tank. The Phantom
system’s internal baffle / basket controls fuel slosh and keeps the fuel pump sub-
merged in fuel, even at low fuel levels and in aggressive driving. The best part about
UNIVERSAL A1000 this whole system its completely universal.
STEALTH PUMP ASSEMBLY PART NO. DESCRIPTION
Designed for the custom tank builder or fabrica-
tor, the universal assembly uses O-Ring clamps 18688 Phantom 340 Stealth fuel system
to positively seal the provided ¾” tube to the 18309 Dual Phantom Stealth fuel system
both the filter pickup and the fuel pump inlet, CARBURETED PHANTOM
allowing for perfect placement of the pickup • Line Pressure preset to 15 psi
and ensuring superior performance. • Features Aeromotive Stealth 325 pump NEW!
• Supports 200 to 1,200 horsepower
PART NO. DESCRIPTION PART NO. DESCRIPTION

18668 Universal A1000 stealth pump assembly 18201 Carbureted Phantom
124
