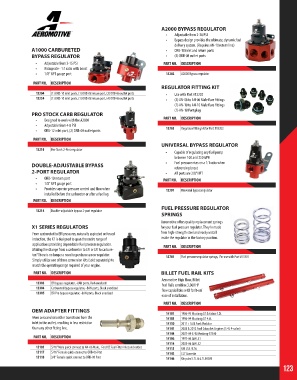

Page 123 - 2018 Master Catalog

A2000 BYPASS REGULATOR
• Adjustable from 2-20 PSI
• Bypass design provides the ultimate, dynamic fuel
delivery system. (Requires AN-10 return line)
A1000 CARBURETED • ORB-10 inlet and return ports
BYPASS REGULATOR • (4) ORB-08 outlet ports
• Adjustable from 3-15 PSI PART NO. DESCRIPTION
• Rising rate - 1:1 ratio with boost
• 1/8” NPT gauge port 13202 A2000 Bypass regulator

PART NO. DESCRIPTION
REGULATOR FITTING KIT
13204 (1) ORB-10 inlet ports, (1) ORB-08 return port, (2) ORB-06 outlet ports • Use with Part #13202
13224 (1) ORB-10 inlet ports, (1) ORB-08 return port, (4) ORB-06 outlet ports • (4) AN-06 to AN-06 Male flare fittings
(1) AN-10 to AN-10 Male flare fittings
(1) AN-10 Port plug
PRO STOCK CARB REGULATOR
• Designed to work with the A2000 PART NO. DESCRIPTION
• Adjustable from 4-8 PSI
• ORB-12 inlet port, (2) ORB-08 outlet ports 13203 Regulator fitting kit for Part #13202
PART NO. DESCRIPTION
UNIVERSAL BYPASS REGULATOR
13210 Pro-Stock 2-Port regulator
• Capable of regulating any fuel pump
between 100 and 250 GPH
DOUBLE-ADJUSTABLE BYPASS • Fuel pressure rises on a 1:1 ratio when
referencing boost
2-PORT REGULATOR • All ports are 3/8” NPT
• ORB-10 return port PART NO. DESCRIPTION
• 1/8” NPT gauge port
• Provides superior pressure control and flow when 13301 Universal bypass regulator
installed before the carburetor or after a fuel log
PART NO. DESCRIPTION
FUEL PRESSURE REGULATOR
13214 Double-adjustable bypass 2-port regulator
SPRINGS
Aeromotive offers quality replacement springs
X1 SERIES REGULATORS for your fuel pressure regulator. They’re made
From carbureted to EFI pressures, naturally aspirated or forced from high-strength steel and easily install
induction, the X1 is designed to span the entire range of inside the regulator in the factory position.
applications providing dependable fuel pressure regulation. PART NO. DESCRIPTION
Making the change from a carburetor to EFI or EFI to carbure-
tor? There is no longer a need to purchase a new regulator. 13701 Fuel pressure regulator springs, For use with Part #13301
Simply utilize one of three conversion kits (sold separately) to
match the operating range required of your engine.
PART NO. DESCRIPTION BILLET FUEL RAIL KITS
Aeromotive High Flow, Billet
13303 EFI bypass regulator, -8AN ports, Red anodized Fuel Rails combine 3,000 HP
13304 Carbureted bypass regulator, -8AN ports, Black anodized flow capabilities with ‘bolt-on’
13305 EFI Pro bypass regulator, -8AN ports, Black anodized
ease of installation.
PART NO. DESCRIPTION
OEM ADAPTER FITTINGS 14101 1986-95 Mustang GT & Cobra 5.0L
More area and smoother transitions from the 14103 1996-04 Mustang GT 4.6L
inlet to the outlet, resulting in less restriction 14130 2011+ 5.0L Ford Modular
than any other fitting line. 14141 2008 & 2012 Ford Cobra Jet Engines (5.4L 4-valve)
14144 2007-09 5.4L Mustang GT500
PART NO. DESCRIPTION 14106 1997-04 GM LS1
14114 2005-06 GM LS2
15103 5/16” Male quick connect to AN-06 Male, Ford OE Fuel Filter inlet and outlet 14115 GM LS3 / L76
15117 5/16” Female quick connect to ORB-06 Port 14142 LS7 Corvette
15118 3/8” Female quick connect to ORB-08 Port 14146 Chrysler 5.7L & 6.1L HEMI

123
