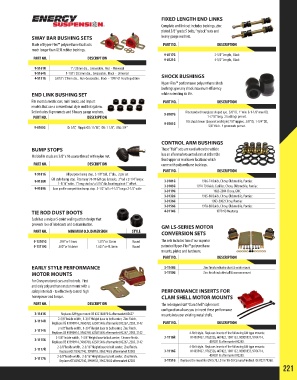

Page 221 - 2018 Master Catalog

FIXED LENGTH END LINKS
Complete end link set includes bushings, zinc
plated 3/8” grade 5 bolts, “nylock” nuts and
SWAY BAR BUSHING SETS heavy gauge washers.
Made of Hyper-Flex™ polyurethane that lasts PART NO. DESCRIPTION
much longer than OEM rubber bushings.
9-8117G 2-5/8” Length, Black
PART NO. DESCRIPTION 9-8121G 4-1/2” Length, Black
9-5161R 1” / 25mm dia., Greaseable, Red - Universal
9-5164G 1-1/8” / 28.5mm dia., Greaseable, Black - Universal
4-5151G 0.813” / 21mm dia., Non-Greaseable, Black - 1997-01 Ford Expedition SHOCK BUSHINGS
Hyper-Flex™ performance polyurethane shock
bushings give any shock maximum efficiency
END LINK BUSHING SET while extending its life.
Fits most domestic cars, mini trucks, and import PART NO. DESCRIPTION
models that use a conventional style end link system.
Set includes: 8 grommets and 8 heavy gauge washers. 9-8107G Fits standard hourglass shaped eye. 5/8” ID, 1” min. & 1-1/8” max OD,
PART NO. DESCRIPTION 1-7/16” long. 2 bushings per set.
9-8101G Fits shock tower (bayonet end style) 7/8” nipples. 3/8” ID, 1-1/4” OD,
9-8105G ID: 3/8”, Nipple OD: 11/16”, OD: 1-1/8”, OAL: 3/4” 5/8” thick. 4 grommets per set.

CONTROL ARM BUSHINGS
BUMP STOPS These “Half” sets are used when the vehicle
Molded in studs are 3/8” x 16 coarse thread with nylon nut. has an aftermarket control arm at either the
front upper or rear lower locations which
PART NO. DESCRIPTION came with polyurethane bushings.
PART NO. DESCRIPTION
9-9101G All purpose bump stop. 2-1/8” tall, 2” dia., 2 per set
9-9150R GM style bump stop. Fits many ‘70-99 GM cars & trucks. 2” tall x 2-1/4” long x 3-3101G 1966-74 Buick, Chevy, Oldsmobile, Pontiac
1-1/16” wide. 1” long stud w/ a 5/16” dia. locating pin at 1” offset.
9-9109G Low profile competition bump stop. 2-1/2” tall x 4-1/2” long x 2-1/2” wide 3-3105G 1974-79 Buick, Cadillac, Chevy, Oldsmobile, Pontiac
3-3119G 1983-2004 Chevy, GMC
3-3132G 1965-88 Buick, Chevy, Oldsmobile, Pontiac
3-3136G 1993-2002 Chevy, Pontiac
3-3156G 1978-88 Buick, Chevy, Oldsmobile, Pontiac
TIE ROD DUST BOOTS 4-3114G 1979-93 Mustang
Each has a unique 5-point sealing action design that
prevents loss of lubricants and contamination. GM LS-SERIES MOTOR
PART NO. MINIMUM O.D. DIMENSION STYLE CONVERSION SETS

9-13101G .590” or 15mm 1.375” or 35mm Round The sets includes two of our superior
9-13119G .650” or 16.6mm 1.625” or 41.3mm Round patented Hyper-Flex™ polyurethane
mounts, plates and hardware.
PART NO. DESCRIPTION
EARLY STYLE PERFORMANCE 3-1148G Zinc finish includes short & wide mount
MOTOR MOUNTS 3-1150G Zinc finish includes tall & narrow mount
For Chevy motored cars and hot rods. First
and only polyurethane motor mount with a
safety interlock - to effectively control high PERFORMANCE INSERTS FOR
horsepower and torque. CLAM SHELL MOTOR MOUNTS
PART NO. DESCRIPTION The redesigned GM “Clam Shell” style insert
configuration allows you to insert these performance
3-1141G Replaces GM type mount OE #22188970 & aftermarket #2627 mounts into your existing metal shells.
2-5/8” Inside width, 1-3/4” Height base to bolt center, Zinc Finish.
3-1114R
Replaces OE #3990914, 3960768, 6258154 & aftermarket #2267, 2285, 2142 PART NO. DESCRIPTION
3-1114G 2-5/8” Inside width, 1-3/4” Height base to bolt center, Zinc Finish.
Replaces OE #3990914, 3960768, 6258154 & aftermarket #2267, 2285, 2142 4-Bolt style. Replaces inserts of the following GM type mounts:
2-5/8” Inside width, 1-3/4” Height base to bolt center, Chrome Finish. 3-1116R #14039437, 9762326, 467422, 1001132, 10001133, 9764714,
3-1115G
Replaces OE #3990914, 3960768, 6258154 & aftermarket #2267, 2285, 2142 459021 & aftermarket #2292.
2-3/8” Inside width, 2-3/16” Height base to bolt center, Zinc Finish. 4-Bolt style. Replaces inserts of the following GM type mounts:
3-1117R
Replaces OE #3962740, 3990918, 3962748 & aftermarket #2283 3-1116G #14039437, 9762326, 467422, 1001132, 10001133, 9764714,
3-1117G 2-3/8” Inside width, 2-3/16” Height base to bolt center, Zinc Finish. 459021 & aftermarket #2292.
Replaces OE #3962740, 3990918, 3962748 & aftermarket #2283 3-1151G Replaces the insert for GM 5.7L, LS1 in ‘98-02 Camaro/Firebird. OE #22179268.
221
