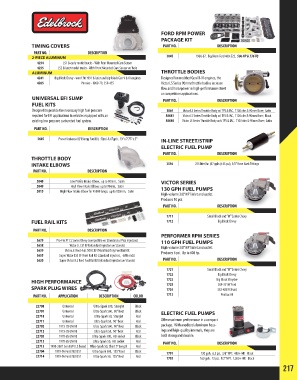

Page 217 - 2018 Master Catalog

FORD RPM POWER
PACKAGE KIT
TIMING COVERS PART NO. DESCRIPTION
PART NO. DESCRIPTION
2-PIECE ALUMINUM 2045 1968-87, Big Block Ford 460-522, 506 HP & 536 TQ
4254 LS1 & early model trucks - With Rear Mounted Cam Sensor
4255 LS2 & later model trucks - With Front Mounted Cam Sensor w/ hole
ALUMINUM THROTTLE BODIES
4241 Big Block Chevy - won’t fit 1991 & later and big-block Gen V & VI engines Designed for modified Gen III-IV engines, the
4265 Pontiac - 1969-79, 350-455 Victor LS Series 90mm throttle bodies increase
flow and horsepower in high-performance street
or competition applications.
UNIVERSAL EFI SUMP PART NO. DESCRIPTION
FUEL KITS
Designed to provide the necessary high fuel pressure 3864 Victor LS Series Throttle Body w/ TPS & IAC, 1100 cfm & 90mm Bore; Satin
required for EFI applications in vehicles equipped with an 38643 Victor LS Series Throttle Body w/ TPS & IAC, 1100 cfm & 90mm Bore; Black
existing low pressure carbureted fuel systsm. 38640 Victor LS Series Throttle Body w/o TPS & IAC, 1100 cfm & 90mm Bore; Satin
PART NO. DESCRIPTION

3605 Preset Universal EFI Sump Fuel Kit, 58psi & 67gph, 13” x 7.75” x 5” IN-LINE STREET/STRIP
ELECTRIC FUEL PUMP
PART NO. DESCRIPTION
THROTTLE BODY
INTAKE ELBOWS 3594 255 liter/hr. (67 gph @ 45 psi), 3/8” Hose Barb Fittings
PART NO. DESCRIPTION

3848 Low Profile Intake Elbow; up to 90mm, Satin VICTOR SERIES
3849 High Flow Intake Elbow; up to 90mm, Satin 130 GPH FUEL PUMPS
3815 High Flow Intake Elbow for 4500 Flange; up to 120mm, Satin
High-volume 3/8” NPT inlet and outlet.
Produces 10 psi.
PART NO. DESCRIPTION

1711 Small Block and “W” Series Chevy
FUEL RAIL KITS 1712 Big Block Chevy
PART NO. DESCRIPTION
PERFORMER RPM SERIES
3629 Pro-Flo XT LS Series Chevy (compatible w/ Standard or Pico injectors) 110 GPH FUEL PUMPS
3638 Victor Jr. LS1 EFI (standard injectors w/ stands) High-volume 3/8” NPT inlet and outlet.
3639 Victor Jr. Ford 4.6L SOHC EFI Manifold Only Fuel Rail Kit Produces 6 psi. Up to 600 hp.
3655 Super Victor LS3 EFI Fuel Rail Kit (standard injectors, -8AN ends)
3620 Super Victor 8.2 Ford Fuel Rail Kit (standard injectors w/ stands) PART NO. DESCRIPTION

1721 Small Block and “W” Series Chevy
1722 Big Block Chevy
HIGH PERFORMANCE 1723 Big Block Chrysler
1725
289-351W Ford
SPARK PLUG WIRES 1724 352-428 FE Ford
PART NO. APPLICATION DESCRIPTION COLOR 1713 Pontiac V8
22700 Universal Ultra-Spark 500, Straight Black
22701 Universal Ultra-Spark 500, 90° boot Black ELECTRIC FUEL PUMPS
22710 Universal Ultra-Spark 50, Straight Red
22711 Universal Ultra-Spark 50, 90° boot Red Offer maximum performance in a compact
22702 1973-78 GM V8 Ultra-Spark 500, 90° boot Black package. With anodized aluminum hous-
22712 1973-78 GM V8 Ultra-Spark 50, 90° boot Red ings and high-quality internals, they are
22703 1978-85 GM V8 Ultra-Spark 500, HEI socket Black both strong and durable.
22713 1978-85 GM V8 Ultra-Spark 50, HEI socket Red PART NO. DESCRIPTION
22715 1998-2007 Gen III/IV LS based Ultra-Spark 50, Short 9” Length Red
22704 1979-96 Ford 302/351 Ultra-Spark 500, 135° boot Black 1791 120 gph, 6.5 psi, 3/8” NPT, 480+ HP, Black
22714 1979-96 Ford 302/351 Ultra-Spark 50, 135° boot Red 1792 160 gph, 12 psi, 1/2” NPT, 1,000+ HP, Black

217
