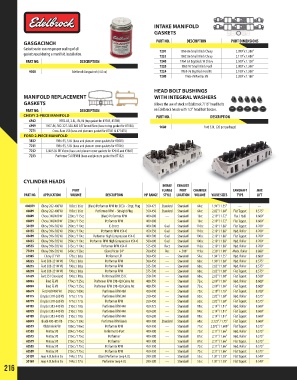

Page 216 - 2018 Master Catalog

INTAKE MANIFOLD
GASKETS
GASGACINCH PART NO. DESCRIPTION PORT DIMENSIONS
Gasket sealer assures proper sealing of all 7201
gaskets used during a manifold installation. 1955-86 Small Block Chevy 2.090” x 1.280”
7235 1962-86 Small Block Chevy 2.110” x 1.080”
PART NO. DESCRIPTION 7240 1964-65 Big Block-W Chevy 2.500” x 1.130”
7220 1962-97 Small Block Ford 2.000” x 1.200”
9300 Edelbrock Gasgacinch (4.0 oz) 7224 1961-76 Big Block Ford FE 2.100” x 1.200”
7280 1965-76 Pontiac V8 2.200” x 1.180”

HEAD BOLT BUSHINGS
MANIFOLD REPLACEMENT WITH INTEGRAL WASHERS
GASKETS Allows the use of stock or Edelbrock 7/16” head bolts
PART NO. DESCRIPTION on Edelbrock heads with 1/2” head bolt bosses.
CHEVY 2-PIECE MANIFOLD PART NO. DESCRIPTION
6942 1982-85, 2.8L, 4V, V6 (top gasket for #3785, #3789)
6999 1957-86, 302-327-350-400 S/B Tunnel Ram (base to top gasket for #7110) 9680 Ford 5.0L (20 per package)
7271 Cross-Ram LS3 (base and plenums gasket for #7141 & #71413)
FORD 2-PIECE MANIFOLD
3832 1986-95, 5.0L (base and plenum cover gaskets for #3821)
7231 1986-95, 5.0L (base and plenum cover gaskets for #7126)
7232 5.0L/5.8L EFI Victor (base and plenum cover gaskets for #2945 and #3887)
7233 Performer 5.0 RPM II (base and plenum gasket for #7132)

CYLINDER HEADS
INTAKE EXHAUST
PORT FLANGE PORT CHAMBER CAMSHAFT MAX
PART NO. APPLICATION VOLUME DESCRIPTION HP RANGE STYLE LOCATION VOLUME VALVE SIZES TYPE LIFT
608879 Chevy 262-400 V8 185cc / 65cc (Bare) Performer RPM for SCCA - Strgt. Plug 350-475 Standard Standard 64cc 1.94” / 1.55” --- ---
60899 Chevy 262-400 V8 195cc / 65cc Performer RPM - Straight Plug 350-450 Standard Standard 64cc 2.02” / 1.60” Flat Tappet 0.575”
60809 Chevy 348/409 W 220cc / 115cc (Bare) Performer RPM 400-600 --- Standard 16cc 2.19” / 1.72” Flat / Hyd. 0.600”
60819 Chevy 348/409 W 220cc / 115cc Performer RPM 400-600 --- Standard 16cc 2.19” / 1.72” Flat Tappet 0.600”
50459 Chevy 396-502 V8 290cc / 110cc E-Street 400-500 Oval Standard 110cc 2.19” / 1.88” Flat Tappet 0.700”
60455 Chevy 396-502 V8 290cc / 110cc Performer RPM 454-O 450-550 Oval Standard 110cc 2.19” / 1.88” Hyd. Roller 0.700”
60499 Chevy 396-502 V8 290cc / 110cc Performer High Compression 454-O 400-500 Oval Standard 100cc 2.19” / 1.88” Flat Tappet 0.700”
60435 Chevy 396-502 V8 290cc / 110cc Performer RPM High Compression 454-O 500-600 Oval Standard 100cc 2.19” / 1.88” Hyd. Roller 0.700”
60555 Chevy 396-502 V8 315cc / 110cc Performer RPM 454-R 525-650 Rect Standard 118cc 2.19” / 1.88” Hyd. Roller 0.700”
77419 Chevy 396-502 V8 340cc / 128cc (Bare) Victor 24° 700-850 Rec +.500” 119cc 2.30” / 1.90” Mech. Roller 0.880”
61905 Chevy LT1 V8 170cc / 60cc Performer LT1 300-450 --- Standard 54cc 1.94” / 1.55” Hyd. Roller 0.600”
60225 Ford 289-251W V8 170cc / 60cc Performer RPM 300-450 --- Standard 60cc 1.90” / 1.60” Hyd. Roller 0.575”
60255 Ford 289-251W V8 190cc / 60cc Performer RPM 325-500 --- Standard 60cc 2.02” / 1.60” Hyd. Roller 0.575”
60259 Ford 289-251W V8 190cc / 60cc Performer RPM 375-500 --- Standard 60cc 2.02” / 1.60” Flat Tappet 0.575”
61629 Ford 351 Cleveland 190cc / 90cc Performer RPM 351C 350-500 --- Standard 60cc 2.05” / 1.60” Flat Tappet 0.580”
60065 Ford FE V8 170cc / 125cc Performer RPM 390-428 Cobra Jet 400-550 --- Standard 72cc 2.09” / 1.66” Hyd. Roller 0.600”
60069 Ford FE V8 170cc / 125cc Performer RPM 390-428 Cobra Jet 400-550 --- Standard 72cc 2.09” / 1.66” Flat Tappet 0.600”
60679 Ford 429/460 V8 292cc / 100cc Performer RPM 460 450-600 --- Standard 75cc 2.19” / 1.76” Flat Tappet 0.700”
60175 Chrysler 318-360 V8 171cc / 77cc Performer RPM 340 350-450 --- Standard 65cc 2.02” / 1.60” Hyd. Roller 0.575”
60779 Chrysler 318-360 V8 171cc / 77cc Performer RPM 350-450 --- Standard 63cc 2.02” / 1.60” Flat Tappet 0.575”
60185 Chrysler 383-440 V8 210cc / 70cc Performer RPM 440 450-575 --- Standard 88cc 2.14” / 1.81” Hyd. Roller 0.600”
60929 Chrysler 383-440 V8 210cc / 70cc Performer RPM 440 450-600 --- Standard 84cc 2.14” / 1.81” Flat Tappet 0.600”
60189 Chrysler 383-440 V8 210cc / 70cc Performer RPM 440 450-600 --- Standard 88cc 2.14” / 1.81” Flat Tappet 0.600”
60049 Buick 400-455 V8 215cc / 130cc Performer RPM Buick 400-500 Standard Standard 68cc 2.125” / 1.75” Flat Tappet 0.600”
60519 Oldsmobile V8 188cc / 106cc Performer RPM 450-550 --- Standard 77cc 2.072” / 1.680” Flat Tappet 0.575”
61595 Pontiac V8 204cc / 145cc Performer D-Port 400-500 --- Standard 72cc 2.11” / 1.66” Hyd. Roller 0.575”
60575 Pontiac V8 215cc / 175cc Performer 400-500 --- Standard 87cc 2.11” / 1.66” Hyd. Roller 0.575”
60579 Pontiac V8 215cc / 175cc Performer 400-500 --- Standard 87cc 2.11” / 1.66” Flat Tappet 0.575”
60595 Pontiac V8 215cc / 175cc Performer RPM 450-550 --- Standard 72cc 2.11” / 1.66” Hyd. Roller 0.575”
60599 Pontiac V8 215cc / 175cc Performer RPM 450-550 --- Standard 72cc 2.11” / 1.66” Flat Tappet 0.575”
50159 Jeep 4.0L Inline Six 144cc / 77cc (Bare) Performer Jeep 4.0L 200-300 --- Standard 55cc 1.91” / 1.50” Flat Tappet 0.540”
50169 Jeep 4.0L Inline Six 144cc / 77cc Performer Jeep 4.0L 200-300 --- Standard 55cc 1.91” / 1.50” Flat Tappet 0.540”
216
