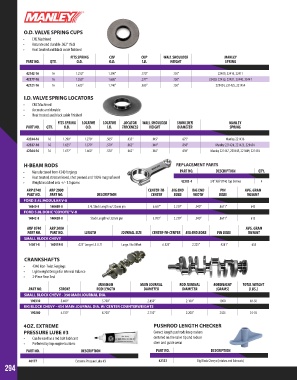

Page 294 - 2018 Master Catalog

O.D. VALVE SPRING CUPS
• CNC Machined
• Accurate and durable .062” thick
• Heat treated and black oxide finished
FITS SPRING CUP CUP WALL SHOULDER MANLEY
PART NO. QTY. O.D. O.D. I.D. HEIGHT SPRING

42142-16 16 1.250” 1.390” .570” .150” 22409, 22410, 22411
42377-16 16 1.550” 1.680” .577” .150” 22429, 22430, 22431, 22440, 22441
42121-16 16 1.625” 1.740” .635” .150” 221424, 221425, 221454

I.D. VALVE SPRING LOCATORS
• CNC Machined
• Accurate and durable
• Heat treated and black oxide finished
FITS SPRING LOCATOR LOCATOR LOCATOR WALL SHOULDER SHOULDER MANLEY
PART NO. QTY. O.D. O.D. I.D. THICKNESS HEIGHT DIAMETER SPRING

42334-16 16 1.290” 1.270” .505” .035” .145” .675” Manley 221436
42337-16 16 1.625” 1.570” .570” .062” .140” .850” Manley 221424, 221425, 221454
42364-16 16 1.677” 1.660” .570” .062” .140” .630” Manley 221447, 221448, 221449, 221450

H-BEAM RODS REPLACEMENT PARTS
• Manufactured from 4340 forgings PART NO. DESCRIPTION QTY.
• Heat treated, stress relieved, shot peened and 100% magnafluxed
• Weight matched sets +/- 1.5 grams 42383-4 3/8” ARP 8740 Cap Screws 4
ARP 8740 ARP 2000 CENTER-TO- BIG END BIG END PIN AVG. GRAM
PART NO. PART NO. DESCRIPTION CENTER BORE WIDTH BORE WEIGHT
FORD 5.4L MODULAR V-8
14040-8 14040R-8 5.4L Stock Length w/ 22mm pin 6.657” 2.239” .940” .8671” 645
FORD 5.0L DOHC “COYOTE” V-8
14042-8 14042R-8 Stock Length w/ 22mm pin 5.933” 2.239” .940” .8671” 615
ARP 8740 ARP 2000 AVG. GRAM
PART NO. PART NO. LENGTH JOURNAL SIZE CENTER-TO-CENTER BIG END BORE PIN BORE WEIGHT
SMALL BLOCK CHEVY
14051-8 14051R-8 .025” Longer LS / LT1 Large / No Offset 6.125” 2.225” .9281” 655

CRANKSHAFTS
• 4340 Non-Twist Forgings
• Lightweight Design for Internal Balance
• 2-Piece Rear Seal
MINIMUM MAIN JOURNAL ROD JOURNAL BOBWEIGHT TOTAL WEIGHT
PART NO. STROKE ROD LENGTH DIAMETER DIAMETER (GRAMS) (LBS.)
SMALL BLOCK CHEVY - 350 MAIN JOURNAL DIA.
190310 3.480” 5.700” 2.450” 2.100” 1800 48-50
BIG BLOCK CHEVY - 454 MAIN JOURNAL DIA. W/ CENTER COUNTERWEIGHTS
190280 4.750” 6.700” 2.750” 2.200” 2425 74-76

4OZ. EXTREME PUSHROD LENGTH CHECKER
PRESSURE LUBE #3 Correct length pushrods keep rockers
• Can be used as a rod bolt lubricant centered on the valve tip and reduce
• Preferred by top engine builders stem and guide wear.
PART NO. DESCRIPTION PART NO. DESCRIPTION
40177 Extreme Pressure Lube #3 42133 Big Block Chevys (Intakes and Exhausts)
