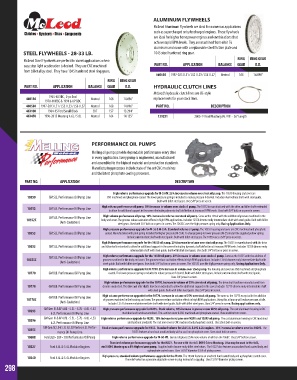

Page 298 - 2018 Master Catalog

ALUMINUM FLYWHEELS
McLeod Aluminum Flywheels are ideal for numerous applications
such as supercharged or turbocharged engines. These flywheels
are ideal for higher horsepower engines and combinations that
achieve rapid RPM levels. They are machined from 6061 T6
aluminum and come with a replaceable steel friction plate and
STEEL FLYWHEELS - 28-33 LB. 1045 steel hardened ring gear.
McLeod Steel Flywheels are perfect for street applications where RING RING GEAR
easy stop light acceleration is desired. They are CNC machined PART NO. APPLICATION BALANCE GEAR O.D.
from billet alloy steel. They have 1045 hardened steel ring gears.
560530 1997-2013 LS1 / LS2 / LS3 / LS6 / LS7 Neutral 168 14.096”
RING RING GEAR
PART NO. APPLICATION BALANCE GEAR O.D. HYDRAULIC CLUTCH LINES
McLeod’s hydraulic clutch lines are OE-style
1955-85 SBC, 2-pc Seal
460130 Neutral 168 14.096” replacements for your stock lines.
1970-90 BBC & 1991 & UP BBC
460530 1997-2013 LS1 / LS2 / LS3 / LS6 / LS7 Neutral 168 14.096” PART NO. DESCRIPTION
463100 1964-95 Ford Small Block EXT 157 13.294”
463458 1996-2015 Mustang 4.6L / 5.0L Neutral 164 14.125” 139251 2005-14 Ford Mustang V6 / V8 - 36” Length

PERFORMANCE OIL PUMPS
Melling oil pumps provide dependable performance every time
in every application. Every pump is engineered, manufactured
and assembled to the highest material and production standards.
Manufacturing processes include state of the art CNC machines
and the latest phosphate coating processes.
PART NO. APPLICATION DESCRIPTION

High volume performance upgrade for M-55HV. 25% increase in volume over stock oil pump. The 10550 housing and cover are
10550 GM S.B. Performance Oil Pump Line CNC machined and phosphate coated. The lower pressure spring is included to reduce pressure if desired. Includes intermediate shaft with steel guide.
Built with billet steel gears. Uses 5/8” press in screen.
10552 GM S.B. Performance Oil Pump Line High volume performance oil pump. 10% increase in volume over stock oil pump. The 10552 is manufactured with the drive and idler shafts extended
to allow for additional support in the cover eliminating dynamic shaft deflection at increased RPM levels. Uses both 3/4” bolt on or press in screen.
GM S.B. Performance Oil Pump Line High volume performance oil pump. 10% increase in volume over stock oil pump. Same as the 10552 with the addition of grooves machined in the
10552C body and cover. The grooves reduce cavitation effects in high RPM applications. Includes 12550 chrome moly intermediate shaft with steel guide. Built with billet
(Anti-Cavitation) steel gears. Uses both 3/4” bolt on or press in screen. The 10552C uses the high pressure spring only. Racing Applications Only.
High pressure performance upgrade for M-55 & M-55A. Standard volume oil pump. The 10553 housing and cover are CNC machined and phosphate
10553 GM S.B. Performance Oil Pump Line coated. Manufactured with pink spring installed for higher pressure (M-55A). To change pump to lower pressure (M-55) install the supplied yellow spring.
Includes intermediate shaft with steel guide. Built with billet steel gears. The 10553 uses a 5/8” press in screen.
High Volume performance upgrade for the 10550 oil pump. 25% increase in volume over stock oil pump. The 10555 is manufactured with the drive
10555 GM S.B. Performance Oil Pump Line and idler shafts extended to allow for additional support in the cover eliminating dynamic shaft deflection at increased RPM levels. Includes 12550 chrome moly
intermediate shaft with steel guide. Built with billet steel gears. Uses both 3/4” bolt on or press in screen.
GM S.B. Performance Oil Pump Line High volume performance upgrade for the 10550 oil pump. 25% increase in volume over stock oil pump. Same as the 10555 with the addition of
10555C grooves machined in the body and cover. The grooves reduce cavitation effects in high RPM applications. Includes 12550 chrome moly intermediate shaft with
(Anti-Cavitation) steel guide. Built with billet steel gears. Uses both 3/4” bolt on or press in screen. The 10555C uses the high pressure spring only. Racing Applications Only.
High volume performance upgrade for M-77HV. 25% increase in volume over stock pump. The housing and cover are CNC machined and phosphate
10770 GM B.B. Performance Oil Pump Line coated. The lower pressure spring is included to reduce pressure if desired. Built with billet steel gears. Includes intermediate shaft with steel guide.
Uses 3/4” press in screen.
High volume performance upgrade for the 10770. Increase in volume of 25% over stock oil pump. The drive shaft has been manufactured from
10778 GM B.B. Performance Oil Pump Line chrome-moly steel. The drive and idler shafts have been extended to allow for additional support in the cover. Includes 12770 chrome moly intermediate shaft
with steel guide. Built with billet steel gears. Uses 3/4” press in screen.
GM B.B. Performance Oil Pump Line High volume performance upgrade for the 10770. Increase in volume of 25% over stock oil pump. The same as the 10778 except with the addition
10778C of grooves machined in the housing and cover. The grooves reduce cavitation effects in high RPM applications. Using this oil pump will reduce pressure at idle.
(Anti-Cavitation) Includes 12770 chrome moly intermediate shaft with steel guide. Built with billet steel gears. Uses 3/4” press in screen. Racing applications only.
GM Gen III & IV 4.8L - 5.3L - 5.7L - 6.0L • LS3 High pressure performance upgrade for M295. Stock volume, 10% increase in pressure over M295 oil pump. The cast aluminum housing is CNC
10295
6.2L Performance Oil Pump Line machined and hardcoat anodized. The cast iron cover is CNC machined and phosphate coated. Uses stock bolt on screen.
GM Gen III & IV 4.8L - 5.3L - 5.7L - 6.0L • LS3 High volume performance upgrade for M295. 18% increase in volume over M295 and 10295 oil pump. The cast aluminum housing is CNC machined
10296
6.2L Performance Oil Pump Line and hardcoat anodized. The cast iron cover is CNC machined and phosphate coated. Uses stock bolt on screen.
GM Gen IV, LS4 5.3L & L92 Vortec 6.2L Perfor- Stock volume performance upgrade for M355. Standard volume for LS4 5.3L & L92 6.2L engines. 33% increase in volume over the 10295. The
10355
mance Oil Pump Line 10355 features a hard coat anodized body with a cast iron phosphate cover. Uses stock bolt on screen.
10688 Ford 260 • 289 • 302 Performance Oil Pump High volume performance upgrade for M-68-HV. Gerotor displaces 25% more volume of oil than the 10687. Uses 5/8” bolt on screen.
Standard volume performance upgrade for the M227. For use with the 4.6L DOHC Cobra Mustang. Also may be used in the 4.6L,
10227 Ford 4.6L & 5.4L Modular Engines vin X SOHC Mustang as a 8% High volume pump. Supplied with chrome-moly billet steel rotors. The 10227 also features an anodized hard coated body and
a phosphate coated cover. Uses 15/16” diameter 335S oil pickup screen.
10340 Ford 4.6L & 5.4L Modular Engines High pressure, standard volume performance upgrade for the M340. The 10340 features an anodized hard coated body and a phosphate coated cover.
The relief valve has a pressure adjustable screw-in plug instead of a cup plug. Uses 15/16” diameter pickup screen.
298
