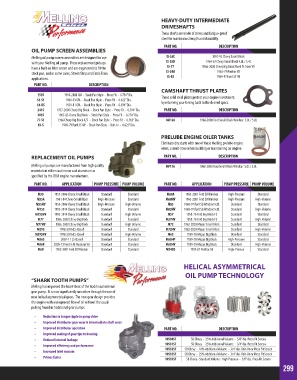

Page 299 - 2018 Master Catalog

HEAVY-DUTY INTERMEDIATE
DRIVESHAFTS
These shafts are made of stress and fatigue-proof
steel for maximum strength and durability.
PART NO. DESCRIPTION
OIL PUMP SCREEN ASSEMBLIES
Melling oil pump screen assemblies are designed for use IS-55E 1957-93 Chevy Small Block
with your Melling oil pump. These replacement pickups IS-55D 1964-67 Chevy Small Block 4.6L / 5.4L
have a built-in filter screen and are engineered to fit the IS-77 1966-2006 Chevy Big Block Mark IV / Gen VII
stock pan, and in some cases, Street/Strip and Circle Track IS-54A 1963-79 Pontiac V8
applications. IS-83 1969-97 Ford 351W
PART NO. DESCRIPTION
CAMSHAFT THRUST PLATES
155S 1993-2000 GM - Stock Pan Style - Press Fit - 0.750” Dia. These solid steel plates protect your engine investment
55-S1 1960-93 GM - Stock Pan Style - Press Fit - 0.623” Dia. by returning your timing back to the desired specs.
54-DS 1959-81 GM - Stock Pan Style - Press Fit - 0.594” Dia.
241S 1977-2000 Chevy Big Block - Stock Pan Style - Press Fit - 0.594” Dia. PART NO. DESCRIPTION
305S 1967-85 Chevy Big Block - Stock Pan Style - Press Fit - 0.750” Dia.
77-S1 1966 Chevy Big Block 427 - Stock Pan Style - Press Fit - 0.563” Dia. MF126 1968-2000 Ford Small Block WIndsor 5.0L / 5.8L
83-S 1969-79 Ford 351W - Stock Pan Style - Bolt-In - 0.625” Dia.
PRELUBE ENGINE OILER TANKS
Eliminate dry starts with one of these Melling prelube engine
oilers, a must-have when building or maintaining an engine.
REPLACEMENT OIL PUMPS PART NO. DESCRIPTION
Melling oil pumps are manufactured from high quality MF126 1968-2000 Ford Small Block WIndsor 5.0L / 5.8L
materials in either cast iron or cast aluminum as
specified by the OEM engine manufacturer.
PART NO. APPLICATION PUMP PRESSURE PUMP VOLUME PART NO. APPLICATION PUMP PRESSURE PUMP VOLUME
M55 1955-2006 Chevy Small Block Standard Standard M68A 1962-2001 Ford SB Windsor High-Pressure Standard
M55A 1961-84 Chevy Small Block High-Pressure Standard M68HV 1962-2001 Ford SB Windsor High-Pressure High-Volume
M55HV 1955-2006 Chevy Small Block High-Pressure High-Volume M83 1969-97 Ford SB Windsor 5.8L Standard Standard
M155 1992-2014 Chevy Small Block Standard Standard M83HV 1969-97 Ford SB Windsor 5.8L Standard High-Volume
M155HV 1992-2014 Chevy Small Block Standard High-Volume M57 1958-76 Ford Big Block FE Standard Standard
M77 1966-2000 Chevy Big Block Standard Standard M57HV 1958-76 Ford Big Block FE Standard High-Volume
M77HV 1966-2000 Chevy Big Block Standard High-Volume M72 1962-2003 Mopar Small Block Standard Standard
M295 1998-2016 LS-Based Standard Standard M72HV 1962-2003 Mopar Small Block Standard High-Volume
M295HV 1998-2016 LS-Based Standard High-Volume M63 1959-78 Mopar Big Block Standard Standard
M365 2007-11 LS-Based Standard Standard M63HP 1959-78 Mopar Big Block High-Pressure Standard
M360 2005-12 Ford 5.4L Modular V8 Standard Standard M63HV 1959-78 Mopar Big Block Standard High-Volume
M68 1962-2001 Ford SB Windsor Standard Standard M54DS 1959-81 Pontiac V8 High-Pressue Standard

HELICAL ASYMMETRICAL
OIL PUMP TECHNOLOGY
“SHARK TOOTH PUMPS”
Melling has improved the heart-beat of the traditional internal
gear pump. It is now significantly smoother through the use of
new helical asymmetrical gears. The new gear design provides
the engine with an improved flow of oil without the usual
pulsing found in traditional gear pumps.

• Reduction in torque ripple in pump drive
• Improved distributor gear wear & intermediate shaft wear
• Improved distributor operation PART NO. DESCRIPTION
• Improved sealing of gear tips to housing
• Reduced internal leakage 10550ST SB Chevy - 25% Additional Volume - 5/8” dia. Press Fit Screen
• Improved efficiency and performance 10551ST SB Chevy - 25% Additional Volume - 3/4” dia. Press Fit Screen
10552ST SB Chevy - 10% Additional Volume - 3/4” dia. Bolt-On or Press Fit Screen
• Increased inlet vacuum 10555ST SB Chevy - 25% Additional Volume - 3/4” dia. Bolt-On or Press Fit Screen
• Primes faster 10553ST SB Chevy - Standard Volume - High Pressure - 5/8” dia. Press Fit Screen

299
