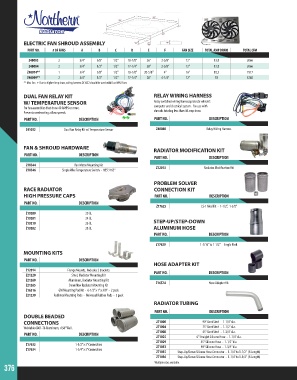

Page 376 - 2018 Master Catalog

ELECTRIC FAN SHROUD ASSEMBLY
PART NO. # OF FANS A B C D E F FAN SIZE TOTAL AMP DRAW TOTAL CFM

Z40003 2 3/4” 5/8” 1/2” 18-1/8” 26” 2-5/8” 12” 13.8 2066
Z40004 2 3/4” 1/2” 1/2” 17-1/4” 28” 2-5/8” 12” 13.8 2066
Z40074** 1 3/4” 5/8” 1/2” 18-1/8” 20-5/8” 4” 16” 18.5 1917
Z40099** 2 3/4” 1/2” 1/2” 17-1/4” 28” 4-1/4” 12” 33 3280
** Max Fan + Due to higher Amp draw, wiring harness Z41032 should be used with Dual MAX Fans

DUAL FAN RELAY KIT RELAY WIRING HARNESS
W/ TEMPERATURE SENSOR Relay switched wiring harness protects vehicle’s
For fan assemblies that draw 40 AMPS or more. computer and electrical system. For use with
Prevents overheating at low speeds. shrouds totaling less than 40 amp draw.
PART NO. DESCRIPTION PART NO. DESCRIPTION

Z41032 Dual Fan Relay Kit w/ Temperature Sensor Z40080 Relay Wiring Harness

FAN & SHROUD HARDWARE RADIATOR MODIFICATION KIT
PART NO. DESCRIPTION
PART NO. DESCRIPTION
Z18344 Fan Motor Mounting Kit Z12013 Radiator Modification Kit
Z18346 Single Wire Temperature Switch - 185°/165°

PROBLEM SOLVER
RACE RADIATOR CONNECTION KIT
HIGH PRESSURE CAPS PART NO. DESCRIPTION
PART NO. DESCRIPTION
Z17625 LS-1 Mod Kit - 1-1/2”, 1-3/8”
Z19200 20 lb.
Z19201 24 lb.
Z19210 26 lb. STEP-UP/STEP-DOWN
Z19202 28 lb. ALUMINUM HOSE
PART NO. DESCRIPTION
Z17629 1-5/16” to 1-1/2” - Single Pack
MOUNTING KITS
PART NO. DESCRIPTION
HOSE ADAPTER KIT
Z12014 Flange Mounts. Includes 2 brackets PART NO. DESCRIPTION
Z21220 Steel, Radiator Mounting Kit
Z21260 Aluminum, Radiator Mounting Kit
Z21265 Downflow Radiator Mounting Kit Z16524 Hose Adapter Kit
Z16516 GM Mounting Pad Kit - 6-1/2” x 1” x 3/8” - 2 pack
Z21230 Radiator Mounting Pads - Universal Rubber Pads - 2 pack
RADIATOR TUBING

PART NO. DESCRIPTION
DOUBLE BEADED
CONNECTIONS Z71000 90° Bent Steel - 1-1/4” dia.
Weldable 6061-T6 Aluminum, .058” Wall. Z71004 75° Bent Steel - 1-1/2” dia.
PART NO. DESCRIPTION Z71008 45° Bent Steel - 1-3/4” dia.
Z71025 6” Straight Silicone Hose - 1-1/4” dia.
Z71029 45° Silicone Hose - 1-1/2” dia.
Z17633 1-1/2” x 3” Connection Z71033 90° Silicone Hose - 1-3/4” dia.
Z17634 1-3/4” x 3” Connection
Z71035 Step-Up/Down Silicone Hose Connector - 1-1/4” to 1-1/2” (8 Length)
Z71036 Step-Up/Down Silicone Hose Connector - 1-1/4” to 1-3/4” (8 Length)
*Multiple sizes available.
376
