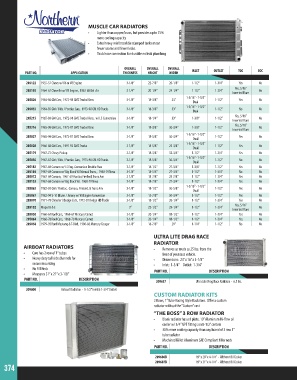

Page 374 - 2018 Master Catalog

MUSCLE CAR RADIATORS
• Lighter than copper/brass, but provides up to 75%
more cooling capacity
• Extra heavy reinforced die stamped tanks mean
fewer seams and fewer leaks
• Thick hose connection for durable no leak plumbing

OVERALL OVERALL OVERALL INLET OUTLET TOC EOC
PART NO. APPLICATION THICKNESS HEIGHT WIDTH

205122 1955-57 Chevy w/ V6 or V8 Engine 3-1/8” 22-7/8” 20-1/8” 1-1/2” 1-3/4” Yes No
205195 1964-67 Chevelle w/ V8 Engine, 1963-68 Bel-Air 3-1/4” 20-1/4” 24-1/4” 1-1/2” 1-3/4” Yes, 5/16” No
Inverted Flare
1-5/16” - 1-1/2”
205026 1964-86 GM Cars, 1972-98 GMC Trucks/Vans 3-1/8” 18-3/8” 33” 1-1/2” Yes No
Dual
1-5/16” - 1-1/2”
205055 1964-85 GM / Olds / Pontiac Cars, 1973-98 GM HD Trucks 3-1/8” 18-3/8” 33” 1-1/2” No No
Dual
Yes, 5/16”
205215 1965-86 GM Cars, 1972-91 GMC Trucks/Vans, w/ LS Conversion 3-1/8” 18-1/4” 33” 1-3/8” 1-1/2” No
Inverted Flare
Yes, 5/16”
205216 1965-90 GM Cars, 1972-87 GMC Trucks/Vans 3-1/8” 18-3/8” 30-3/4” 1-3/8” 1-1/2” No
Inverted Flare
1-5/16” - 1-1/2”
205027 1965-90 GM Cars, 1972-87 GMC Trucks/Vans 3-1/8” 18-5/8” 30-3/4” 1-1/2” Yes No
Dual
1-5/16” - 1-1/2”
205028 1966-88 GM Cars, 1991-93 GMC Trucks 3-1/8” 18-5/8” 25-3/8” 1-1/2” Yes No
Dual
205179 1967-72 Chevy Pickup 3-1/8” 18-3/8” 32-3/4” 1-1/2” 1-3/4” Yes No
1-5/16” - 1-1/2”
205056 1967-87 GM / Olds / Pontiac Cars, 1973-98 GM HD Trucks 3-1/8” 18-5/8” 30-3/4” 1-1/2” No No
Dual
205182 1967-69 Camaro w/ LS Eng. Conversion Double Pass 3-1/8” 18-1/2” 27-3/4” 1-3/8” 1-1/2” Yes No
205184 1967-69 Camaro w/ Big Block V8 Manual Trans., 1968-79 Nova 3-1/8” 18-5/8” 27-3/4” 1-1/2” 1-3/4” No No
205072 1967-69 Camaro, 1967-69 Pontiac Firebird, Trans Am 3-1/8” 18-7/8” 25-7/8” 1-1/2” 1-3/4” Yes No
205133 1967-69 Camaro w/ Big Block V8. 1968-79 Nova 3-1/8” 18-7/8” 27-3/4” 1-1/2” 1-3/4” Yes No
1-5/16” - 1-1/2”
205062 1982-92 GM / Pontiac, Camaro, Firebird, & Trans Am 3-1/8” 18-1/2” 30-5/8” 1-1/2” Yes No
Dual
205067 1982-94 S-10 Blazer / Jimmy w/ V8 Engine Conversion 3-1/8” 15-7/8” 30-3/4” 1-1/2” 1-1/2” Yes No
205070 1971-78 Chrysler / Dodge Cars, 1972-93 Dodge HD Trucks 3-1/8” 18-1/2” 26-1/4” 1-1/2” 1-3/4” Yes No
Yes, 5/16”
205192 Mopar B & E 3” 22-1/2” 25-1/4” 1-1/2” 1-3/4” No
Inverted Flare
205030 1960-67 Ford Cars, 1960-67 Mercury Comet 3-1/8” 20-1/4” 18-1/2” 1-1/2” 1-3/4” Yes No
205064 1960-70 Ford Cars, 1960-70 Mercury Comet 3-1/8” 20-1/4” 18-1/2” 1-1/2” 1-3/4” Yes No
205058 1979-93 Ford Mustang & T-Bird, 1980-88 Mercury Cougar 3-1/8” 18-7/8” 29” 1-1/4” 1-1/2” No No
ULTRA LITE DRAG RACE
RADIATOR
AIRBOAT RADIATORS • Removes as much as 25 lbs. from the
• Core has 2 row of 1” tubes front of your race vehicle.
• Heavy duty tall side channels for • Dimensions: 24” x 16” x 3-1/8”
secure mounting • Inlet: 1-3/4” Outlet: 1-3/4”
• No Fill Neck PART NO. DESCRIPTION
• Measures 31” x 21” x 3-1/8”
PART NO. DESCRIPTION
209637 Ultra Lite Drag Race Radiator - 6.5 lbs.
209000 Airboat Radiator - 1-1/2” Inlet & 1-3/4” Outlet
CUSTOM RADIATOR KITS
2 Rows, 1” Tube Racing Style Radiators. Offer a custom
radiator without the “Custom” cost
“THE BOSS” 3 ROW RADIATOR
• Blank radiator has a 8 plate, 10” Aluminum Hi-flow oil
cooler w/ 3/4” NPT fittings on 8-1/2” centers
• 30% more cooling capacity than any brand of 2 row 1”
tube radiator
• Machined Billet Aluminum SAE Compliant filler neck
PART NO. DESCRIPTION
209686B 19” x 28” x 4-1/4” - Without Oil Cooler
209687B 19” x 31” x 4-1/4” - Without Oil Cooler
374
