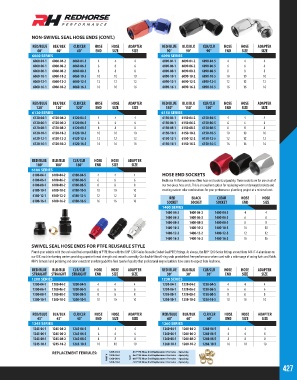

Page 427 - 2018 Master Catalog

NON-SWIVEL SEAL HOSE ENDS (CONT.)
RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
60° 60° 60° END SIZE SIZE 90° 90° 90° END SIZE SIZE
6060 SERIES 6090 SERIES
6060-04-1 6060-04-2 6060-04-5 4 4 4 6090-04-1 6090-04-2 6090-04-5 4 4 4
6060-06-1 6060-06-2 6060-06-5 6 6 6 6090-06-1 6090-06-2 6090-06-5 6 6 6
6060-08-1 6060-08-2 6060-08-5 8 8 8 6090-08-1 6090-08-2 6090-08-5 8 8 8
6060-10-1 6060-10-2 6060-10-5 10 10 10 6090-10-1 6090-10-2 6090-10-5 10 10 10
6060-12-1 6060-12-2 6060-12-5 12 12 12 6090-12-1 6090-12-2 6090-12-5 12 12 12
6060-16-1 6060-16-2 6060-16-5 16 16 16 6090-16-1 6090-16-2 6090-16-5 16 16 16

RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
120° 120° 120° END SIZE SIZE 150° 150° 150° END SIZE SIZE
6120 SERIES 6150 SERIES
6120-04-1 6120-04-2 6120-04-5 4 4 4 6150-04-1 6150-04-2 6150-04-5 4 4 4
6120-06-1 6120-06-2 6120-06-5 6 6 6 6150-06-1 6150-06-2 6150-06-5 6 6 6
6120-08-1 6120-08-2 6120-08-5 8 8 8 6150-08-1 6150-08-2 6150-08-5 8 8 8
6120-10-1 6120-10-2 6120-10-5 10 10 10 6150-10-1 6150-10-2 6150-10-5 10 10 10
6120-12-1 6120-12-2 6120-12-5 12 12 12 6150-12-1 6150-12-2 6150-12-5 12 12 12
6120-16-1 6120-16-2 6120-16-5 16 16 16 6150-16-1 6150-16-2 6150-16-5 16 16 16

RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
180° 180° 180° END SIZE SIZE
6180 SERIES
6180-04-1 6180-04-2 6180-04-5 4 4 4 HOSE END SOCKETS
6180-06-1 6180-06-2 6180-06-5 6 6 6 Redhorse Performance now offers hose end sockets separately. These sockets are for use on all of
6180-08-1 6180-08-2 6180-08-5 8 8 8 our two piece hose ends. This is an excellent option for replacing worn or damaged sockets and
6180-10-1 6180-10-2 6180-10-5 10 10 10 creating custom color combinations for your performance plumbing project at a minimal cost.
6180-12-1 6180-12-2 6180-12-5 12 12 12 RED BLACK CLEAR HOSE HOSE
6180-16-1 6180-16-2 6180-16-5 16 16 16 SOCKET SOCKET SOCKET END SIZE
1400 SERIES
1400-04-3 1400-04-2 1400-04-5 4 4
1400-06-3 1400-06-2 1400-06-5 6 6
1400-08-3 1400-08-2 1400-08-5 8 8
1400-10-3 1400-10-2 1400-10-5 10 10
1400-12-3 1400-12-2 1400-12-5 12 12
1400-16-3 1400-16-2 1400-16-5 16 16
SWIVEL SEAL HOSE ENDS FOR PTFE REUSABLE STYLE
Plumb your vehicle with the unrivaled fuel compatibility of PTFE Hose with the RHP 1200 Series Reusable Swivel Seal PTFE fittings. As always, the RHP 1200 Series fittings are cut from 6061 T-6 aluminum on
our CNC machine turning centers providing superior thread strength and smooth assembly. Our double Viton O-ring seals provide leak free performance when used with a wide range of racing fuels and fluids.
RHP’s famous hand polishing and color consistent anodizing add the final touch of quality that professional engine builders have come to expect from Redhorse.
RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
STRAIGHT STRAIGHT STRAIGHT END SIZE SIZE 30° 30° 30° END SIZE SIZE
1200 SERIES 1230 SERIES
1200-04-1 1200-04-2 1200-04-5 4 4 4 1230-04-1 1230-04-2 1230-04-5 4 4 4
1200-06-1 1200-06-2 1200-06-5 6 6 6 1230-06-1 1230-06-2 1230-06-5 6 6 6
1200-08-1 1200-08-2 1200-08-5 8 8 8 1230-08-1 1230-08-2 1230-08-5 8 8 8
1200-10-1 1200-10-2 1200-10-5 10 10 10 1230-10-1 1230-10-2 1230-10-5 10 10 10

RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
45° 45° 45° END SIZE SIZE 60° 60° 60° END SIZE SIZE
1245 SERIES 1260 SERIES
1245-04-1 1245-04-2 1245-04-5 4 4 4 1260-04-1 1260-04-2 1260-04-5 4 4 4
1245-06-1 1245-06-2 1245-06-5 6 6 6 1260-06-1 1260-06-2 1260-06-5 6 6 6
1245-08-1 1245-08-2 1245-08-5 8 8 8 1260-08-1 1260-08-2 1260-08-5 8 8 8
1245-10-1 1245-10-2 1245-10-5 10 10 10 1260-10-1 1260-10-2 1260-10-5 10 10 10
REPLACEMENT FERRULES: 1200-04-0 -04 PTFE Hose End Replacement Ferrules - 6pcs/pkg
1200-06-0
PART # 1200-08-0 SIZE -06 PTFE Hose End Replacement Ferrules - 6pcs/pkg
-08 PTFE Hose End Replacement Ferrules - 6pcs/pkg
1200-10-0 -10 PTFE Hose End Replacement Ferrules - 6pcs/pkg
427
