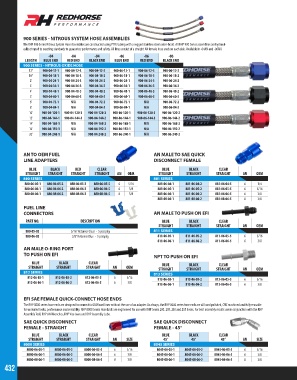

Page 432 - 2018 Master Catalog

900 SERIES - NITROUS SYSTEM HOSE ASSEMBLIES
The RHP 900 Series Nitrous System Hose Assemblies are constructed using PTFE tubing with a rugged stainless steel outer-braid. All RHP 900 Series assemblies are hydrauli-
cally crimped to exacting standards to guarantee performance and safety. All lines consist of a straight AN female hose ends on each side. Available in -04AN and -06AN.
-04 -04 -04 -06 -06 -06
LENGTH BLUE END RED END BLACK END BLUE END RED END BLACK END
900 SERIES - NITROUS OXIDE HOSE
12” 900-04-12-1 900-04-12-3 900-04-12-2 900-06-12-1 900-06-12-3 900-06-12-2
18” 900-04-18-1 900-04-18-3 900-04-18-2 900-06-18-1 900-06-18-3 900-06-18-2
2’ 900-04-24-1 900-04-24-3 900-04-24-2 900-06-24-1 900-06-24-3 900-06-24-2
3’ 900-04-36-1 900-04-36-3 900-04-36-2 900-06-36-1 900-06-36-3 900-06-36-2
4’ 900-04-48-1 900-04-48-3 900-04-48-2 900-06-48-1 900-06-48-3 900-06-48-2
5’ 900-04-60-1 900-04-60-3 900-04-60-2 900-06-60-1 900-06-60-3 900-06-60-2
6’ 900-04-72-1 N/A 900-04-72-2 900-06-72-1 N/A 900-06-72-2
8’ 900-04-84-1 N/A 900-04-84-2 900-06-84-1 N/A 900-06-84-2
10’ 900-04-120-1 900-04-120-3 900-04-120-2 900-06-120-1 900-06-120-3 900-06-120-2
12’ 900-04-144-1 900-04-144-3 900-04-144-2 900-06-144-1 900-06-144-3 900-06-144-2
14’ 900-04-168-1 N/A 900-04-168-2 900-06-168-1 N/A 900-06-168-2
16’ 900-04-192-1 N/A 900-04-192-2 900-06-192-1 N/A 900-06-192-2
20’ 900-04-240-1 N/A 900-04-240-2 900-06-240-1 N/A 900-06-240-2

AN TO OEM FUEL AN MALE TO SAE QUICK
LINE ADAPTERS DISCONNECT FEMALE

BLUE BLACK RED CLEAR BLUE BLACK CLEAR
STRAIGHT STRAIGHT STRAIGHT STRAIGHT AN OEM STRAIGHT STRAIGHT STRAIGHT AN OEM
880 SERIES 881 SERIES
880-06-05-1 880-06-05-2 880-06-05-3 880-06-05-5 6 5/16 881-06-04-1 881-06-04-2 881-06-04-5 6 1/4
880-06-06-1 880-06-06-2 880-06-06-3 880-06-06-5 6 3/8 881-06-05-1 881-06-05-2 881-06-05-5 6 5/16
880-08-06-1 880-08-06-2 880-08-06-3 880-08-06-5 8 3/8 881-06-06-1 881-06-06-2 881-06-06-5 6 3/8
881-08-06-1 881-08-06-2 881-08-06-5 8 3/8

FUEL LINE
CONNECTORS AN MALE TO PUSH ON EFI
PART NO. DESCRIPTION BLUE BLACK CLEAR
STRAIGHT STRAIGHT STRAIGHT AN OEM
880-05-02 5/16” Retainer Clear - 5 pcs/pkg 811 SERIES
880-06-02 3/8” Retainer Blue - 5 pcs/pkg 811-06-05-1 811-06-05-2 811-06-05-5 6 5/16
811-06-06-1 811-06-06-2 811-06-06-5 6 3/8
AN MALE O-RING PORT
TO PUSH ON EFI NPT TO PUSH ON EFI
BLUE BLACK CLEAR BLUE BLACK CLEAR
STRAIGHT STRAIGHT STRAIGHT AN OEM STRAIGHT STRAIGHT STRAIGHT AN OEM
812 SERIES 813 SERIES
812-06-05-1 812-06-05-2 812-06-05-5 6 5/16 813-06-05-1 813-06-05-2 813-06-05-5 6 5/16
812-06-06-1 812-06-06-2 812-06-06-5 6 3/8
813-06-06-1 813-06-06-2 813-06-06-5 6 3/8

EFI SAE FEMALE QUICK-CONNECT HOSE ENDS
The RHP 8000 series hose ends are designed to connect to OEM hard lines without the use of an adapter. As always, the RHP 8000 series hose ends are all hand polished, CNC machined and fully reusable
for unrivaled looks, performance and versatility. RHP 8000 Series Hose Ends are engineered for use with RHP Series 200, 205, 230 and 235 hoses. For best assembly results use in conjunction with the RHP
Assembly Tool, RHP AN Wrenches, RHP Vise Jaws and RHP Assembly Lube.
SAE QUICK DISCONNECT SAE QUICK DISCONNECT
FEMALE - STRAIGHT FEMALE - 45°
BLUE BLACK CLEAR BLUE BLACK CLEAR
STRAIGHT STRAIGHT STRAIGHT AN SIZE 45° 45° 45° AN SIZE
8000 SERIES 8045 SERIES
8000-06-05-1 8000-06-05-2 8000-06-05-5 6 5/16 8045-06-05-1 8045-06-05-2 8045-06-05-5 6 5/16
8000-06-06-1 8000-06-06-2 8000-06-06-5 6 3/8 8045-06-06-1 8045-06-06-2 8045-06-06-5 6 3/8
8000-08-06-1 8000-08-06-2 8000-08-06-5 8 3/8 8045-08-06-1 8045-08-06-2 8045-08-06-5 8 3/8
