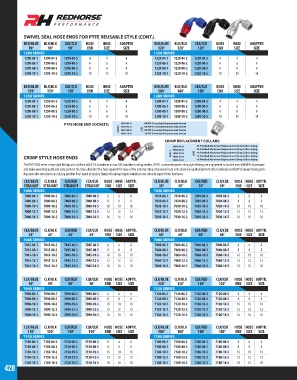

Page 428 - 2018 Master Catalog

SWIVEL SEAL HOSE ENDS FOR PTFE REUSABLE STYLE (CONT.)
RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
90° 90° 90° END SIZE SIZE 120° 120° 120° END SIZE SIZE
1290 SERIES 1220 SERIES
1290-04-1 1290-04-2 1290-04-5 4 4 4 1220-04-1 1220-04-2 1220-04-5 4 4 4
1290-06-1 1290-06-2 1290-06-5 6 6 6 1220-06-1 1220-06-2 1220-06-5 6 6 6
1290-08-1 1290-08-2 1290-08-5 8 8 8 1220-08-1 1220-08-2 1220-08-5 8 8 8
1290-10-1 1290-10-2 1290-10-5 10 10 10 1220-10-1 1220-10-2 1220-10-5 10 10 10

RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER RED/BLUE BLK/BLK CLR/CLR HOSE HOSE ADAPTER
150° 150° 150° END SIZE SIZE 180° 180° 180° END SIZE SIZE
1250 SERIES 1280 SERIES
1250-04-1 1250-04-2 1250-04-5 4 4 4 1280-04-1 1280-04-2 1280-04-5 4 4 4
1250-06-1 1250-06-2 1250-06-5 6 6 6 1280-06-1 1280-06-2 1280-06-5 6 6 6
1250-08-1 1250-08-2 1250-08-5 8 8 8 1280-08-1 1280-08-2 1280-08-5 8 8 8
1250-10-1 1250-10-2 1250-10-5 10 10 10 1280-10-1 1280-10-2 1280-10-5 10 10 10
PTFE HOSE END SOCKETS: 1201-04-0 -04 PTFE Hose End Replacement Socket
1201-06-0
PART # 1201-08-0 SIZE -06 PTFE Hose End Replacement Socket
-08 PTFE Hose End Replacement Socket
1201-10-0 -10 PTFE Hose End Replacement Socket
CRIMP REPLACEMENT COLLARS:
7000-06-0 -06 Polished Aluminum Replacement Crimp Collars 6/pkg
7000-08-0 -08 Polished Aluminum Replacement Crimp Collars 6/pkg
PART # 7000-10-0 SIZE -10 Polished Aluminum Replacement Crimp Collars 6/pkg
CRIMP STYLE HOSE ENDS 7000-12-0 -12 Polished Aluminum Replacement Crimp Collars 6/pkg
7000-16-0 -16 Polished Aluminum Replacement Crimp Collars 6/pkg
The RHP 7000 series crimp style fittings are cut from 6061 T-6 aluminum on our CNC machine turning centers. RHP’s custom designed crimp style fittings are engineered to handle over 6000 PSI of pressure
and make assembly quick and easy: just cut the hose, shoulder the hose against the base of the nut and crimp. Our swivel hose ends allow for quick alignment after assembly and RHP’s famous hand polish-
ing and color consistent an-odizing add the final touch of quality that professional engine builders have come to expect from Redhorse.
CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR. CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR.
STRAIGHT STRAIGHT STRAIGHT STRAIGHT END SIZE SIZE 30° 30° 30° 30° END SIZE SIZE
7000 SERIES 7030 SERIES
7000-06-1 7000-06-2 7000-06-3 7000-06-5 6 6 6 7030-06-1 7030-06-2 7030-06-3 7030-06-5 6 6 6
7000-08-1 7000-08-2 7000-08-3 7000-08-5 8 8 8 7030-08-1 7030-08-2 7030-08-3 7030-08-5 8 8 8
7000-10-1 7000-10-2 7000-10-3 7000-10-5 10 10 10 7030-10-1 7030-10-2 7030-10-3 7030-10-5 10 10 10
7000-12-1 7000-12-2 7000-12-3 7000-12-5 12 12 12 7030-12-1 7030-12-2 7030-12-3 7030-12-5 12 12 12
7000-16-1 7000-16-2 7000-16-3 7000-16-5 16 16 16 7030-16-1 7030-16-2 7030-16-3 7030-16-5 16 16 16

CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR. CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR.
45° 45° 45° 45° END SIZE SIZE 60° 60° 60° 60° END SIZE SIZE
7045 SERIES 7060 SERIES
7045-06-1 7045-06-2 7045-06-3 7045-06-5 6 6 6 7060-06-1 7060-06-2 7060-06-3 7060-06-5 6 6 6
7045-08-1 7045-08-2 7045-08-3 7045-08-5 8 8 8 7060-08-1 7060-08-2 7060-08-3 7060-08-5 8 8 8
7045-10-1 7045-10-2 7045-10-3 7045-10-5 10 10 10 7060-10-1 7060-10-2 7060-10-3 7060-10-5 10 10 10
7045-12-1 7045-12-2 7045-12-3 7045-12-5 12 12 12 7060-12-1 7060-12-2 7060-12-3 7060-12-5 12 12 12
7045-16-1 7045-16-2 7045-16-3 7045-16-5 16 16 16 7060-16-1 7060-16-2 7060-16-3 7060-16-5 16 16 16

CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR. CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR.
90° 90° 90° 90° END SIZE SIZE 120° 120° 120° 120° END SIZE SIZE
7090 SERIES 7120 SERIES
7090-06-1 7090-06-2 7090-06-3 7090-06-5 6 6 6 7120-06-1 7120-06-2 7120-06-3 7120-06-5 6 6 6
7090-08-1 7090-08-2 7090-08-3 7090-08-5 8 8 8 7120-08-1 7120-08-2 7120-08-3 7120-08-5 8 8 8
7090-10-1 7090-10-2 7090-10-3 7090-10-5 10 10 10 7120-10-1 7120-10-2 7120-10-3 7120-10-5 10 10 10
7090-12-1 7090-12-2 7090-12-3 7090-12-5 12 12 12 7120-12-1 7120-12-2 7120-12-3 7120-12-5 12 12 12
7090-16-1 7090-16-2 7090-16-3 7090-16-5 16 16 16 7120-16-1 7120-16-2 7120-16-3 7120-16-5 16 16 16

CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR. CLR/BLUE CLR/BLK CLR/RED CLR/CLR HOSE HOSE ADPTR.
150° 150° 150° 150° END SIZE SIZE 180° 180° 180° 180° END SIZE SIZE
7150 SERIES 7180 SERIES
7150-06-1 7150-06-2 7150-06-3 7150-06-5 6 6 6 7180-06-1 7180-06-2 7180-06-3 7180-06-5 6 6 6
7150-08-1 7150-08-2 7150-08-3 7150-08-5 8 8 8 7180-08-1 7180-08-2 7180-08-3 7180-08-5 8 8 8
7150-10-1 7150-10-2 7150-10-3 7150-10-5 10 10 10 7180-10-1 7180-10-2 7180-10-3 7180-10-5 10 10 10
7150-12-1 7150-12-2 7150-12-3 7150-12-5 12 12 12 7180-12-1 7180-12-2 7180-12-3 7180-12-5 12 12 12
7150-16-1 7150-16-2 7150-16-3 7150-16-5 16 16 16 7180-16-1 7180-16-2 7180-16-3 7180-16-5 16 16 16
428
