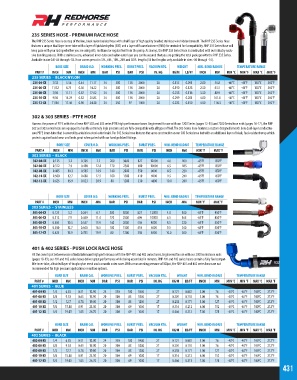

Page 431 - 2018 Master Catalog

235 SERIES HOSE - PREMIUM RACE HOSE
The RHP 235 Series Hose is our top of the line, black nylon braided hose with a half layer of high quality braided stainless wire hidden beneath. The RHP 235 Series Hose
features a unique dual layer inner tube with a layer of Epichlorohydrin (ECO) and a layer of Fluoroelastomer (FKM) for unrivaled fuel compatibility. RHP 235 Series Hose will
keep pace with your racing whether you are using e85, methanol or regular fuel from the pump. As always, the RHP 235 Series Hose is constructed with our industry exclu-
sive bonding process. With a stainless core, advanced inner-tube and nylon outer layer you can be assured that you are getting the total package with the RHP 235 Series.
Available in size AN -04 through -12. Hose comes precut in 3 ft., 6 ft., 10ft., 20ft and 50 ft. lengths (50 foot lengths only available in sizes -04 through -10).
BORE SIZE BRAID O.D. WORKING PRES. BURST PRES. VACUUM RTG. WEIGHT MIN. BEND RADIUS TEMPERATURE RANGE
PART # INCH MM INCH MM BAR PSI BAR PSI IN. HG KG/M LB/FT INCH MM MIN °C MIN °F MAX °C MAX °F
235 SERIES - BLACK NYLON
235-04-XX 7/32 5.56 0.44 11.17 34 500 138 2000 20 0.135 0.091 2.00 50.8 -40°C -40°F 150°C 302°F
235-06-XX 11/32 8.73 0.56 14.22 34 500 138 2000 20 0.190 0.128 2.50 63.5 -40°C -40°F 150°C 302°F
235-08-XX 7/16 11.11 0.67 17.02 34 500 138 2000 20 0.238 0.116 3.50 88.9 -40°C -40°F 150°C 302°F
235-10-XX 9/16 14.29 0.82 20.83 34 500 138 2000 20 0.299 0.201 4.00 101.6 -40°C -40°F 150°C 302°F
235-12-XX 11/16 17.46 0.96 24.38 24 350 97 1400 20 0.223 0.150 4.50 114.3 -40°C -40°F 150°C 302°F

302 & 303 SERIES - PTFE HOSE
Harness the power of PTFE with the all new RHP 302 and 303 series PTFE high performance hoses. Engineered for use with our 1200 Series (pages 12-13) and 7200 Series hose ends (pages 16-17), the RHP
302 and 303 series hoses are equipped to handle extremely high pressure and are fully compatible with all types of fuel. The 303 Series hose features a custom designed smooth bore duel-layer conductive
core PTFE inner-tube that is covered by a stainless steel outer braid. Our 302 Series hose features the same construction as our 303 Series hose but with an additional layer of black, fuel-resistant wrap which
protects against braid wear and looks great when paired with our hand polished fittings.
BORE SIZE COVER O.D. WORKING PRES. BURST PRES. MIN. BEND RADIUS TEMPERATURE RANGE
PART # INCH MM INCH MM BAR PSI BAR PSI INCH MM MIN °F MAX °F
302 SERIES - BLACK
302-04-XX 0.125 3.2 0.305 7.7 200 3000 827 12000 4.0 100 -65°F 450°F
302-06-XX 0.312 7.9 0.490 12.4 170 2500 690 10000 6.5 165 -65°F 450°F
302-08-XX 0.405 10.3 0.585 14.9 140 2000 550 8000 8.5 220 -65°F 450°F
302-10-XX 0.500 12.7 0.688 17.5 100 1500 410 6000 9.5 240 -65°F 450°F
302-12-XX 0.625 15.9 0.823 20.9 80 1200 330 4800 10.0 260 -65°F 450°F

BORE SIZE COVER O.D. WORKING PRES. BURST PRES. MIN. BEND RADIUS TEMPERATURE RANGE
PART # INCH MM INCH MM BAR PSI BAR PSI INCH MM MIN °F MAX °F
303 SERIES - STAINLESS
303-04-XX 0.125 3.2 0.264 6.7 200 3000 827 12000 4.0 100 -65°F 450°F
303-06-XX 0.312 7.9 0.449 11.4 170 2500 690 10000 6.5 165 -65°F 450°F
303-08-XX 0.405 10.3 0.547 13.9 140 2000 550 8000 8.5 220 -65°F 450°F
303-10-XX 0.500 12.7 0.650 16.5 100 1500 410 6000 9.5 240 -65°F 450°F
303-12-XX 0.625 15.9 0.783 19.9 80 1200 330 4800 10.0 260 -65°F 450°F

401 & 402 SERIES - PUSH LOCK RACE HOSE
Hit the sweet spot between ease of installation and high performance with the RHP 401 and 402 series hoses. Engineered for use with our 2000 series hose ends
(pages 18-19), our 401 and 402 series hoses deliver great performance while being assembled in minutes. RHP 401 and 402 series hoses contain a fully fuel compat-
ible inner tube, a braided layer of tough nylon mesh and a smooth outer cover. With a max working pressure of 300psi, the RHP 401 and 402 series hoses are not
recommended for high pressure applications or suction systems.
BORE SIZE BRAID O.D. WORKING PRES. BURST PRES. VACUUM RTG. WEIGHT MIN. BEND RADIUS TEMPERATURE RANGE
PART # INCH MM INCH MM BAR PSI BAR PSI IN. HG KG/M LB/FT INCH MM MIN °C MIN °F MAX °C MAX °F
401 SERIES - BLUE
401-04-XX 1/4 6.35 0.51 12.90 24 350 100 1400 27 0.121 0.081 3.00 76 -40°C -40°F 100°C 212°F
401-06-XX 3/8 9.53 0.63 15.90 20 300 83 1200 27 0.201 0.135 3.00 76 -40°C -40°F 100°C 212°F
401-08-XX 1/2 12.7 0.78 19.80 20 300 83 1200 27 0.238 0.171 5.00 127 -40°C -40°F 100°C 212°F
401-10-XX 5/8 15.88 0.91 23.10 20 300 69 1000 17 0.316 0.212 6.00 152 -40°C -40°F 100°C 212°F
401-12-XX 3/4 19.05 1.05 26.70 20 300 69 1000 17 0.466 0.313 7.00 178 -40°C -40°F 100°C 212°F

BORE SIZE BRAID O.D. WORKING PRES. BURST PRES. VACUUM RTG. WEIGHT MIN. BEND RADIUS TEMPERATURE RANGE
PART # INCH MM INCH MM BAR PSI BAR PSI IN. HG KG/M LB/FT INCH MM MIN °C MIN °F MAX °C MAX °F
402 SERIES - BLACK
402-04-XX 1/4 6.35 0.51 12.90 24 350 100 1400 27 0.121 0.081 3.00 76 -40°C -40°F 100°C 212°F
402-06-XX 3/8 9.53 0.63 15.90 20 300 83 1200 27 0.201 0.135 3.00 76 -40°C -40°F 100°C 212°F
402-08-XX 1/2 12.7 0.78 19.80 20 300 83 1200 27 0.238 0.171 5.00 127 -40°C -40°F 100°C 212°F
402-10-XX 5/8 15.88 0.91 23.10 20 300 69 1000 17 0.316 0.212 6.00 152 -40°C -40°F 100°C 212°F
402-12-XX 3/4 19.05 1.05 26.70 20 300 69 1000 17 0.466 0.313 7.00 178 -40°C -40°F 100°C 212°F
