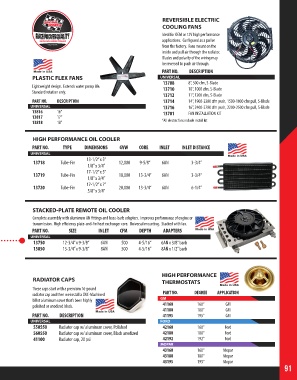

Page 91 - 2018 Master Catalog

REVERSIBLE ELECTRIC
COOLING FANS
Ideal for OEM or 12V high performance
applications. Configured as a puller
from the factory. Fans mount on the
inside and pull air through the radiator.
Blades and polarity of the wiring may
be reversed to push air through.
PART NO. DESCRIPTION
PLASTIC FLEX FANS UNIVERSAL
Lightweight design. Extends water pump life. 13708 8”, 500 cfm, S-Blade
13710
10”, 1000 cfm, S-Blade
Standard rotation only.
13712 11”, 1200 cfm, S-Blade
PART NO. DESCRIPTION 13714 14”, 1900-2300 cfm push, 1500-1800 cfm pull, S-Blade
UNIVERSAL 13716 16”, 2400-2700 cfm push, 2200-2500 cfm pull, S-Blade
13816 16” 13701 FAN INSTALLATION KIT
13817 17”
13818 18” *All electric fans include install kit

HIGH PERFORMANCE OIL COOLER
PART NO. TYPE DIMENSIONS GVW CORE INLET INLET DISTANCE
UNIVERSAL
13-1/2” x 5”
13718 Tube-Fin 12,000 9-5/8” 6AN 3-3/4”
1/8” x 3/4”
17-1/2” x 5”
13719 Tube-Fin 18,000 13-3/4” 6AN 3-3/4”
1/8” x 3/4”
17-1/2” x 7”
13720 Tube-Fin 20,000 13-3/4” 6AN 6-1/4”
5/8” x 3/4”

STACKED-PLATE REMOTE OIL COOLER
Complete assembly with aluminum AN fittings and hose-barb adapters. Improves performance of engine or
transmission. High efficiency plate-and-fin heat exchanger core. Universal mounting. Stacked with fan.
PART NO. SIZE INLET CFM DEPTH ADAPTERS
UNIVERSAL
13750 12-3/4” x 9-3/8” 6AN 500 4-5/16” 6AN x 3/8” barb
15850 13-3/4” x 9-3/8” 8AN 500 4-5/16” 8AN x 1/2” barb

HIGH PERFORMANCE
RADIATOR CAPS THERMOSTATS

These caps start with a premium 16-pound
radiator cap and then we install a CNC-Machined PART NO. DEGREE APPLICATION
billet aluminum cover that’s been highly GM
polished or anodized black. 41160 160° GM
41180 180° GM
PART NO. DESCRIPTION 41195 195° GM
UNIVERSAL FORD
550550 Radiator cap w/ aluminum cover, Polished 42160 160° Ford
560550 Radiator cap w/ aluminum cover, Black anodized 42180 180° Ford
41100 Radiator cap, 20 psi 42192 192° Ford
MOPAR
43160 160° Mopar
43180 180° Mopar
43195 195° Mopar
91
