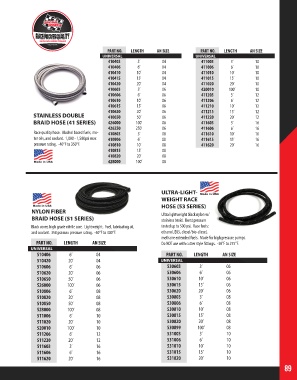

Page 89 - 2018 Master Catalog
P. 89
PART NO. LENGTH AN SIZE PART NO. LENGTH AN SIZE
UNIVERSAL UNIVERSAL
410403 3’ 04 411003 3’ 10
410406 6’ 04 411006 6’ 10
410410 10’ 04 411010 10’ 10
410415 15’ 04 411015 15’ 10
410420 20’ 04 411020 20’ 10
410603 3’ 06 420010 100’ 10
410606 6’ 06 411203 3’ 12
410610 10’ 06 411206 6’ 12
410615 15’ 06 411210 10’ 12
410620 20’ 06 411215 15’ 12
STAINLESS DOUBLE 410650 50’ 06 411220 20’ 12
BRAID HOSE (41 SERIES) 426000 100’ 06 411603 3’ 16
426250 250’ 06 411606 6’ 16
Race quality hose. Alcohol based fuels, mo- 410803 3’ 08 411610 10’ 16
tor oils, and coolant. 1,000 - 1,500psi max 410806 6’ 08 411615 15’ 16
pressure rating. -40°F to 350°F. 410810 10’ 08 411620 20’ 16
410815 15’ 08
410820 20’ 08
428000 100’ 08
ULTRA-LIGHT-
WEIGHT RACE
HOSE (53 SERIES)
NYLON FIBER Ultra lightweight black nylon w/
BRAID HOSE (51 SERIES) stainless braid. Burst pressure
Black cover, high grade nitrile core. Lightweight. Fuel, lubricating oil, tested up to 500 psi. Race fuels:
and coolant. 350 psi max pressure rating. -40°F to 300°F. ethanol, E85, diesel/bio-diesel,
methane extended fuels. Made for high pressure pumps.
PART NO. LENGTH AN SIZE Do NOT use with cutter style fittings. -30°F to 275°F.
UNIVERSAL
510406 6’ 04 PART NO. LENGTH AN SIZE
510420 20’ 04 UNIVERSAL
510606 6’ 06 530603 3’ 06
510620 20’ 06 530606 6’ 06
510650 50’ 06 530610 10’ 06
526000 100’ 06 530615 15’ 06
510806 6’ 08 530620 20’ 06
510820 20’ 08 530803 3’ 08
510850 50’ 08 530806 6’ 08
528000 100’ 08 530810 10’ 08
511006 6’ 10 530815 15’ 08
511020 20’ 10 530820 20’ 08
520010 100’ 10 530899 100’ 08
511206 6’ 12 531003 3’ 10
511220 20’ 12 531006 6’ 10
511603 3’ 16 531010 10’ 10
511606 6’ 16 531015 15’ 10
511620 20’ 16 531020 20’ 10
89
