Page 2 - OBARA New SV Gun
P. 2

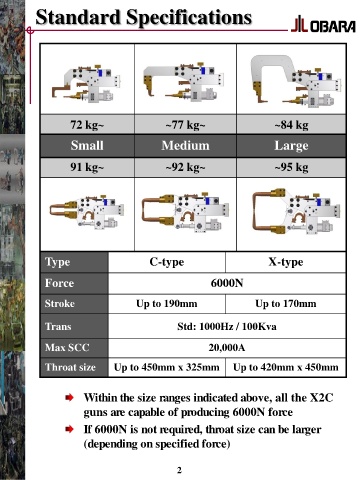

Standard Specifications
72 kg~ ~77 kg~ ~84 kg
Small Medium Large
91 kg~ ~92 kg~ ~95 kg
Type C-type X-type
Force 6000N
Stroke Up to 190mm Up to 170mm
Trans Std: 1000Hz / 100Kva
Max SCC 20,000A
Throat size Up to 450mm x 325mm Up to 420mm x 450mm
Within the size ranges indicated above, all the X2C
guns are capable of producing 6000N force
If 6000N is not required, throat size can be larger
(depending on specified force)
2
