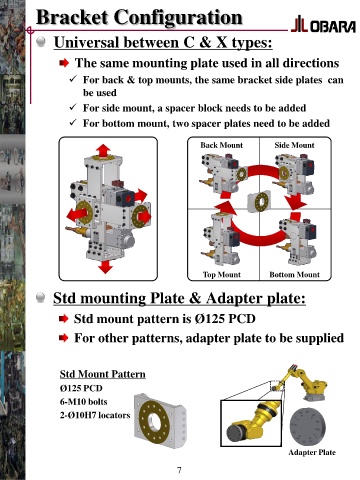

Bracket Configuration

Universal between C & X types:

The same mounting plate used in all directions

 For back & top mounts, the same bracket side plates can
be used

 For side mount, a spacer block needs to be added

 For bottom mount, two spacer plates need to be added

Back Mount Side Mount

Top Mount Bottom Mount

Std mounting Plate & Adapter plate:

Std mount pattern is Ø125 PCD

For other patterns, adapter plate to be supplied

Std Mount Pattern

Ø125 PCD
6-M10 bolts

2-Ø10H7 locators

Adapter Plate
