P. 4

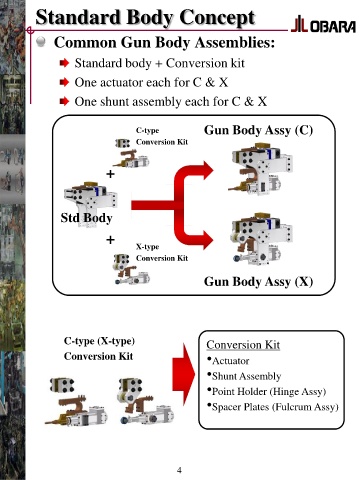

Standard Body Concept



                 Common Gun Body Assemblies:


                       Standard body + Conversion kit


                       One actuator each for C & X


                       One shunt assembly each for C & X



                                          C-type              Gun Body Assy (C)
                                          Conversion Kit



                                 +






                   Std Body


                                 +
                                          X-type

                                          Conversion Kit

                                                              Gun Body Assy (X)










                    C-type (X-type)                            Conversion Kit

                    Conversion Kit                             •Actuator

                                                               •Shunt Assembly

                                                               •Point Holder (Hinge Assy)

                                                               •Spacer Plates (Fulcrum Assy)










                                                      4
