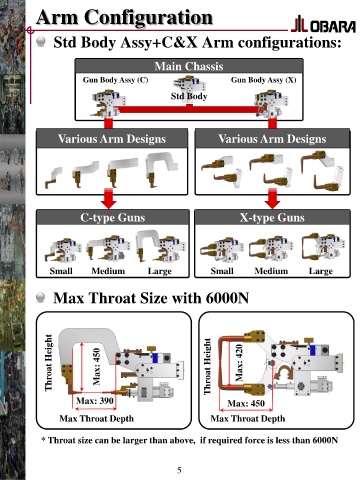

Arm Configuration
Std Body Assy+C&X Arm configurations:
Main Chassis
Gun Body Assy (C) Gun Body Assy (X)
Std Body
Various Arm Designs Various Arm Designs
C-type Guns X-type Guns
Small Medium Large Small Medium Large
Max Throat Size with 6000N
Throat Height Max: 450 Throat Height Max: 420
Max: 390 Max: 450
Max Throat Depth Max Throat Depth
* Throat size can be larger than above, if required force is less than 6000N
