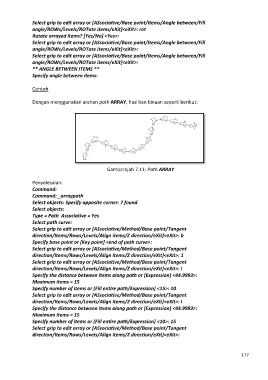

Select grip to edit array or [ASsociative/Base point/Items/Angle between/Fill
angle/ROWs/Levels/ROTate items/eXit]<eXit>: rot
Rotate arrayed items? [Yes/No] <Yes>:
Select grip to edit array or [ASsociative/Base point/Items/Angle between/Fill
angle/ROWs/Levels/ROTate items/eXit]<eXit>:
Select grip to edit array or [ASsociative/Base point/Items/Angle between/Fill
angle/ROWs/Levels/ROTate items/eXit]<eXit>:
** ANGLE BETWEEN ITEMS **
Specify angle between items:

Contoh

Dengan menggunakan arahan path ARRAY, hasilkan binaan seperti berikut:

Gambarajah 7.11: Path ARRAY

Penyelesaian:
Command:
Command: _arraypath
Select objects: Specify opposite corner: 7 found
Select objects:
Type = Path Associative = Yes
Select path curve:
Select grip to edit array or [ASsociative/Method/Base point/Tangent
direction/Items/Rows/Levels/Align items/Z direction/eXit]<eXit>: b
Specify base point or [Key point] <end of path curve>:
Select grip to edit array or [ASsociative/Method/Base point/Tangent
direction/Items/Rows/Levels/Align items/Z direction/eXit]<eXit>: 1
Select grip to edit array or [ASsociative/Method/Base point/Tangent
direction/Items/Rows/Levels/Align items/Z direction/eXit]<eXit>: i
Specify the distance between items along path or [Expression] <44.9993>:
Maximum items = 15
Specify number of items or [Fill entire path/Expression] <15>: 10
Select grip to edit array or [ASsociative/Method/Base point/Tangent
direction/Items/Rows/Levels/Align items/Z direction/eXit]<eXit>: I
Specify the distance between items along path or [Expression] <44.9993>:
Maximum items = 15
Specify number of items or [Fill entire path/Expression] <10>: 15
Select grip to edit array or [ASsociative/Method/Base point/Tangent
direction/Items/Rows/Levels/Align items/Z direction/eXit]<eXit>:
