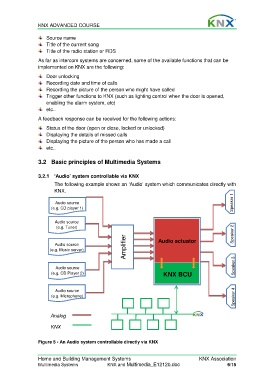

Page 282 - Advanced Course

KNX ADVANCED COURSE

Source name
Title of the current song
Title of the radio station or RDS

As far as intercom systems are concerned, some of the available functions that can be
implemented on KNX are the following:
Door unlocking
Recording date and time of calls
Recording the picture of the person who might have called
Trigger other functions to KNX (such as lighting control when the door is opened,
enabling the alarm system, etc)
etc..

A feedback response can be received for the following actions:
Status of the door (open or close, locked or unlocked)
Displaying the details of missed calls
Displaying the picture of the person who has made a call
etc..

3.2 Basic principles of Multimedia Systems

3.2.1 ‘Audio’ system controllable via KNX
The following example shows an ‘Audio’ system which communicates directly with
KNX.

Audio source Speaker 1
(e.g. CD player 1)

Audio source
(e.g. Tuner)
Audio actuator Speaker 2
Audio source

(e.g. Music server) Amplifier

Speaker 3
Audio source
(e.g. CD Player 2) KNX BCU

Audio source
(e.g. Microphone) Speaker 4

Analog

KNX

Figure 5 - An Audio system controllable directly via KNX

Home and Building Management Systems KNX Association
Multimedia Systems KNX and Multimedia_E1212b.doc 6/15
