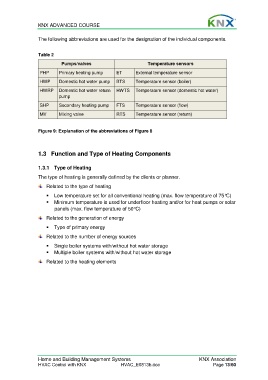

KNX ADVANCED COURSE

                  The following abbreviations are used for the designation of the individual components.

                  Table 2

                            Pumps/valves                           Temperature sensors
                   PHP     Primary heating pump      ET      External temperature sensor

                   HWP     Domestic hot water pump   BTS     Temperature sensor (boiler)
                   HWRP  Domestic hot water return   HWTS    Temperature sensor (domestic hot water)
                           pump
                   SHP     Secondary heating pump    FTS     Temperature sensor (flow)

                   MV      Mixing valve              RTS     Temperature sensor (return)

                  Figure 9: Explanation of the abbreviations of Figure 8



                  1.3  Function and Type of Heating Components



                  1.3.1  Type of Heating
                  The type of heating is generally defined by the clients or planner.

                      Related to the type of heating
                        Low temperature set for all conventional heating (max. flow temperature of 75°C)
                        Minimum temperature is used for underfloor heating and/or for heat pumps or solar
                         panels (max. flow temperature of 50°C)
                      Related to the generation of energy

                        Type of primary energy
                      Related to the number of energy sources

                        Single boiler systems with/without hot water storage
                        Multiple boiler systems with/without hot water storage

                      Related to the heating elements
























                  Home and Building Management Systems                                    KNX Association
                  HVAC Control with KNX                HVAC_E0813b.doc                          Page 13/60
