Table 3

Type Area of application Reaction Comments Type of control Diagram

Hot water convector Residential and Quick Flow temp.: 35-70 °C Continuous (0-10 V or 3-step)
heating functional buildings

Underfloor heating Residential and Slow (6-8h) Flow temp.: 30-45 °C Continuous (0-10 V or 3-step)
functional buildings Additional fuse must be
provided for protection
against excessively high
temperatures
Hot water fan heating Industrial plants Quick Flow temperature should be Single- and multi-level (2-step)
the same as the boiler
temperature (≥ 60°C)

Electric convector Rooms that are rarely Medium to slow Can be basic heating Single- and multi-level
used

Electric fan heating Rooms that are rarely Very quick As additional heating Single- and multi-level
used

Night storage heating Residential and Stores during the Various types Single- and multi-level
functional buildings night, heats
during the day

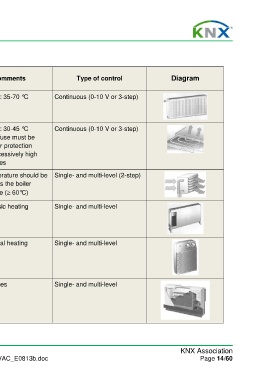

Figure 10: Heating types
