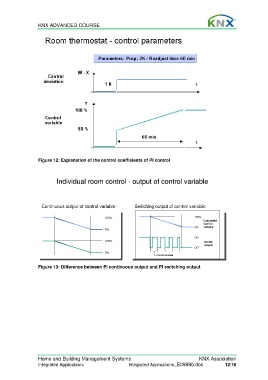

Figure 12: Explanation of the control coefficients of PI control

Individual room control - output of control variable
Individual room control - output of control variable

Continuous output of control variable: Switching output of control variable:

100% 100%
Calculated
control
0% variable
0%
ON
100% Switch
output
OFF
0% T
T = Period duration

Figure 13: Difference between PI continuous output and PI switching output
