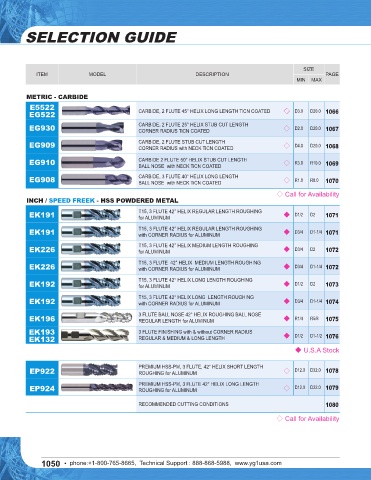

SELECTION GUIDE SOLID CARBIDE & HSS ALU-POWER END MILLS

◎ : Excellent ◯ : Good
P H M K N S
SIZE Carbon Alloy Prehardened High High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Hardened Steels Hardened Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Iron
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
METRIC - CARBIDE
E5522
EG522 CARBIDE, 2 FLUTE 45° HELIX LONG LENGTH TiCN COATED ◇ D3.0 D20.0 1066 ◎

EG930 CARBIDE, 2 FLUTE 25° HELIX STUB CUT LENGTH ◇ D2.0 D20.0 1067 ◎
CORNER RADIUS TiCN COATED

EG909 CARBIDE, 2 FLUTE STUB CUT LENGTH ◇ D4.0 D20.0 1068 ◎
CORNER RADIUS with NECK TiCN COATED
EG910 CARBIDE 2 FLUTE 50° HELIX STUB CUT LENGTH ◇ R3.0 R10.0 1069 ◎
BALL NOSE with NECK TiCN COATED

EG908 CARBIDE, 3 FLUTE 40° HELIX LONG LENGTH ◇ R1.0 R8.0 1070 ◎
BALL NOSE with NECK TiCN COATED
◇ Call for Availability
INCH / SPEED FREEK - HSS POWDERED METAL

EK191 T15, 3 FLUTE 42° HELIX REGULAR LENGTH ROUGHING ◆ D1/2 D2 1071 ◎
for ALUMINUM

EK191 T15, 3 FLUTE 42° HELIX REGULAR LENGTH ROUGHING ◆ D3/4 D1-1/4 1071 ◎
with CORNER RADIUS for ALUMINUM
EK226 T15, 3 FLUTE 42° HELIX MEDIUM LENGTH ROUGHING ◆ D3/4 D2 1072 ◎
for ALUMINUM

EK226 T15, 3 FLUTE 42° HELIX MEDIUM LENGTH ROUGHING ◆ D3/4 D1-1/4 1072 ◎
with CORNER RADIUS for ALUMINUM
EK192 T15, 3 FLUTE 42° HELIX LONG LENGTH ROUGHING ◆ D1/2 D2 1073 ◎
for ALUMINUM

EK192 T15, 3 FLUTE 42° HELIX LONG LENGTH ROUGHING ◆ D3/4 D1-1/4 1074 ◎
with CORNER RADIUS for ALUMINUM
EK196 3 FLUTE BALL NOSE 42° HELIX ROUGHING BALL NOSE ◆ R1/4 R5/8 1075 ◎
REGULAR LENGTH for ALUMINUM
EK193 3 FLUTE FINISHING with & without CORNER RADIUS
EK132 REGULAR & MEDIUM & LONG LENGTH ◆ D1/2 D1-1/2 1076 ◎

◆ U.S.A Stock

PREMIUM HSS-PM, 3 FLUTE, 42° HELIX SHORT LENGTH
EP922 ROUGHING for ALUMINUM ◇ D12.0 D32.0 1078 ◎

EP924 PREMIUM HSS-PM, 3 FLUTE 42° HELIX LONG LENGTH ◇ D12.0 D32.0 1079 ◎
ROUGHING for ALUMINUM
RECOMMENDED CUTTING CONDITIONS 1080

◇ Call for Availability
