ALU-POWER ALU-POWER

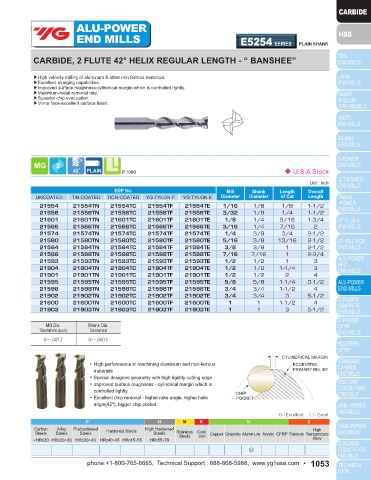

END MILLS E5253 SERIES FLAT SHANK END MILLS E5254 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE 42° HELIX REGULAR LENGTH - “BANSHEE” CARBIDE, 2 FLUTE 42° HELIX REGULAR LENGTH - “ BANSHEE”

▶High velocity milling of aluminum & other non ferrous materials. ▶High velocity milling of aluminum & other non ferrous materials.
▶Excellent plunging capabilities. ▶Excellent plunging capabilities.
▶Improved surface roughness-cylindrical margin which is controlled tightly. ▶Improved surface roughness-cylindrical margin which is controlled tightly.
▶Maximum-metal removal rate. ▶Maximum-metal removal rate.
▶Superior chip evacuation. ▶Superior chip evacuation.
▶Mirror face-excellent surface finish. ▶Mirror face-excellent surface finish.

P.1080 ◆ U.S.A Stock P.1080 ◆ U.S.A Stock
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E Diameter Diameter of Cut Length UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E Diameter Diameter of Cut Length
17574 17574TN 17574TC 17574TF 17574TE 1/4 3/8 3/4 2-1/2 21554 21554TN 21554TC 21554TF 21554TE 1/16 1/8 1/8 1-1/2
17580 17580TN 17580TC 17580TF 17580TE 5/16 3/8 13/16 2-1/2 21556 21556TN 21556TC 21556TF 21556TE 3/32 1/8 1/4 1-1/2
17584 17584TN 17584TC 17584TF 17584TE 3/8 3/8 1 2-1/2 21601 21601TN 21601TC 21601TF 21601TE 1/8 1/4 5/16 1-3/4
17593 17593TN 17593TC 17593TF 17593TE 1/2 1/2 1 3 21566 21566TN 21566TC 21566TF 21566TE 3/16 1/4 7/16 2
18593 18593TN 18593TC 18593TF 18593TE 1/2 1/2 2 4 21574 21574TN 21574TC 21574TF 21574TE 1/4 3/8 3/4 2-1/2
17901 17901TN 17901TC 17901TF 17901TE 1/2 1/2 1-1/4 3-1/4 21580 21580TN 21580TC 21580TF 21580TE 5/16 3/8 13/16 2-1/2
17595 17595TN 17595TC 17595TF 17595TE 5/8 5/8 1-1/4 3-1/2 21584 21584TN 21584TC 21584TF 21584TE 3/8 3/8 1 2-1/2
17598 17598TN 17598TC 17598TF 17598TE 3/4 3/4 1-1/2 4 21588 21588TN 21588TC 21588TF 21588TE 7/16 7/16 1 2-3/4
18598 18598TN 18598TC 18598TF 18598TE 3/4 3/4 3 5-1/2 21593 21593TN 21593TC 21593TF 21593TE 1/2 1/2 1 3
17600 17600TN 17600TC 17600TF 17600TE 1 1 1-1/2 4 21904 21904TN 21904TC 21904TF 21904TE 1/2 1/2 1-1/4 3
18600 18600TN 18600TC 18600TF 18600TE 1 1 3 5-1/2 21901 21901TN 21901TC 21901TF 21901TE 1/2 1/2 2 4
21595 21595TN 21595TC 21595TF 21595TE 5/8 5/8 1-1/4 3-1/2
Mill Dia. Shank Dia. 21598 21598TN 21598TC 21598TF 21598TE 3/4 3/4 1-1/2 4
Tolerance (inch) Tolerance 21902 21902TN 21902TC 21902TF 21902TE 3/4 3/4 3 5-1/2
21600 21600TN 21600TC 21600TF 21600TE 1 1 1-1/2 4
0~-.0012 0~-.0003
21903 21903TN 21903TC 21903TF 21903TE 1 1 3 5-1/2
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
0~-.0012 0~-.0003

• High performance in machining aluminum and non-ferrous CYLINDRICAL MARGIN CYLINDRICAL MARGIN
materials ECCENTRIC • High performance in machining aluminum and non-ferrous ECCENTRIC
• Special designed geometry with high rigidity cutting edge PRIMARY RELIEF materials PRIMARY RELIEF
• Improved surface roughness - cylindrical margin which is • Special designed geometry with high rigidity cutting edge
controlled tightly. • Improved surface roughness - cylindrical margin which is
• Excellent chip removal - higher rake angle, higher helix CHIP controlled tightly. CHIP
angle(42°), bigger chip pocket. POCKET • Excellent chip removal - higher rake angle, higher helix POCKET
angle(42°), bigger chip pocket.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
1052 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1053
