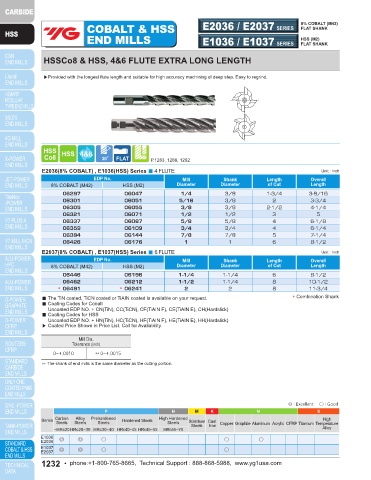

COBALT & HSS E2036 / E2037 SERIES 8% COBALT (M42) COBALT & HSS E2051 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1036 / E1037 SERIES HSS (M2) END MILLS E1051 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8 & HSS, 4&6 FLUTE EXTRA LONG LENGTH HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH DOUBLE

▶Provided with the longest flute length and suitable for high accuracy machining of deep step. Easy to regrind. ▶ Series E2051 four flute end mills are the double-end version of E2031 four flute tools and are used for the same type of finishing operation. Two
tools on one shank saves on sharpening set-up as well as on initial tool costs. Easy to regrind.

P.1283, 1288, 1292 P.1283, 1288, 1292
E2036(8% COBALT) , E1036(HSS) Series ■ 4 FLUTE Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
06297 06047 1/4 3/8 1-3/4 3-9/16 12289 12039 1/8 3/8 3/8 3-1/16
06301 06051 5/16 3/8 2 3-3/4 12290 12040 9/64 3/8 7/16 3-1/8
06305 06055 3/8 3/8 2-1/2 4-1/4 12291 12041 5/32 3/8 7/16 3-1/8
06321 06071 1/2 1/2 3 5 12292 12042 11/64 3/8 1/2 3-1/4
06337 06087 5/8 5/8 4 6-1/8 12293 12043 3/16 3/8 1/2 3-1/4
06359 06109 3/4 3/4 4 6-1/4 12294 12044 13/64 3/8 9/16 3-1/4
06394 06144 7/8 7/8 5 7-1/4 12295 12045 7/32 3/8 9/16 3-1/4
06426 06176 1 1 6 8-1/2 12296 12046 15/64 3/8 5/8 3-3/8
12297 12047 1/4 3/8 5/8 3-3/8
E2037(8% COBALT) , E1037(HSS) Series ■ 6 FLUTE Unit : Inch
EDP No. Mill Shank Length Overall 12298 12048 17/64 3/8 11/16 3-3/8
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 12299 12049 9/32 3/8 11/16 3-3/8
12300 12050 19/64 3/8 3/4 3-1/2
06446 06196 1-1/4 1-1/4 6 8-1/2 12301 12051 5/16 3/8 3/4 3-1/2
06462 06212 1-1/2 1-1/4 8 10-1/2 12302 12052 21/64 3/8 3/4 3-1/2
＊ 06491 ＊ 06241 2 2 8 11-3/4 12303 12053 11/32 3/8 3/4 3-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ＊Combination Shank 12304 12054 23/64 3/8 3/4 3-1/2
■ Coating Codes for Cobalt 12305 12055 3/8 3/8 3/4 3-1/2
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) 12307 12057 25/64 1/2 1 4-1/8
■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) 12309 12059 13/32 1/2 1 4-1/8
▶ Coated Price Shown in Price List. Call for Availability. 12311 12061 27/64 1/2 1 4-1/8
12313 12063 7/16 1/2 1 4-1/8
Mill Dia. 12315 12065 29/64 1/2 1 4-1/8
Tolerance (inch) 12317 12067 15/32 1/2 1 4-1/8
0~+.0010 0~+.0015 12319 12069 31/64 1/2 1 4-1/8
The shank of end mills is the same diameter as the cutting portion. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ▶ NEXT PAGE
■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.

◎ : Excellent ◯ : Good
P H M K N S ◎ : Excellent ◯ : Good
Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High P H M K N S
Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High
Steels Steels Steels Steels Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
E1036 ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
E2036 ◎ ◎ ○ ○ ○
E1037 ◎ ◎ ○ ○
E2037 ◎ ◎ ○ ○
