Page 1235 - YG 2019
P. 1235
COBALT & HSS COBALT & HSS
END MILLS E2020 SERIES 8% COBALT (M42) END MILLS E2021 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK

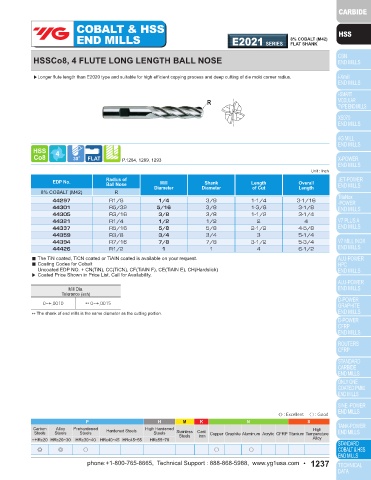

HSSCo8, 4 FLUTE REGULAR LENGTH BALL NOSE HSSCo8, 4 FLUTE LONG LENGTH BALL NOSE
▶ The four flute ball end mills are designed for milling of radius bottom slots fillets and special contours. The end teeth are cut to center allowing ▶Longer flute length than E2020 type and suitable for high efficient copying process and deep cutting of die mold corner radius.
these end mills to drill into material at the beginning of a slotting cut.
R R
↙ ↙
P.1284, 1289, 1293 P.1284, 1289, 1293
Unit : Inch Unit : Inch
EDP No. Radius of Mill Shank Length Overall EDP No. Radius of Mill Shank Length Overall
Ball Nose
Ball Nose
8% COBALT (M42) R Diameter Diameter of Cut Length 8% COBALT (M42) R Diameter Diameter of Cut Length
43289 R1/16 1/8 3/8 3/8 2-5/16 44297 R1/8 1/4 3/8 1-1/4 3-1/16
43293 R3/32 3/16 3/8 1/2 2-3/8 44301 R5/32 5/16 3/8 1-3/8 3-1/8
43297 R1/8 1/4 3/8 5/8 2-7/16 44305 R3/16 3/8 3/8 1-1/2 3-1/4
43301 R5/32 5/16 3/8 3/4 2-1/2 44321 R1/4 1/2 1/2 2 4
43305 R3/16 3/8 3/8 3/4 2-1/2 44337 R5/16 5/8 5/8 2-1/2 4-5/8
43312 R7/32 7/16 3/8 1 2-11/16 44359 R3/8 3/4 3/4 3 5-1/4
43321 R1/4 1/2 1/2 1-1/4 3-1/4 44394 R7/16 7/8 7/8 3-1/2 5-3/4
43337 R5/16 5/8 5/8 1-5/8 3-3/4 44426 R1/2 1 1 4 6-1/2
43350 R11/32 11/16 5/8 1-5/8 3-3/4 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
43359 R3/8 3/4 3/4 1-5/8 3-7/8 ■ Coating Codes for Cobalt
43394 R7/16 7/8 7/8 1-7/8 4-1/8 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
43426 R1/2 1 1 2 4-1/2 ▶ Coated Price Shown in Price List. Call for Availability.
43435 R9/16 1-1/8 1 2 4-1/2
43445 R5/8 1-1/4 1-1/4 2 4-1/2 Mill Dia.
43461 R3/4 1-1/2 1-1/4 2 4-1/2 Tolerance (inch)
43477 R1 2 1-1/4 2 4-1/2 0~+.0010 0~+.0015
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. The shank of end mills is the same diameter as the cutting portion.
■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia.
Tolerance (inch)
0~+.0010 0~+.0015
The shank of end mills is the same diameter as the cutting portion.
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
1236 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1237
