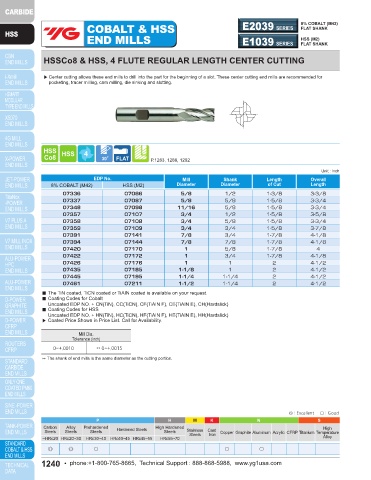

COBALT & HSS E2039 SERIES 8% COBALT (M42) COBALT & HSS E2042 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1039 SERIES HSS (M2) END MILLS E1042 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH CENTER CUTTING HSSCo8 & HSS, 6 FLUTE REGULAR LENGTH CENTER CUTTING

▶ Center cutting allows these end mills to drill into the part for the beginning of a slot. These center cutting end mills are recommended for ▶ Center cutting allows these end mills to drill into the part for the beginning of a slot. These center cutting end mills are recommended for
pocketing, tracer milling, cam milling, die sinking and slotting. pocketing, tracer milling, cam milling, die sinking and slotting.

P.1283, 1288, 1292 P.1283, 1288, 1292
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
07336 07086 5/8 1/2 1-3/8 3-3/8 07322 07072 1/2 1/2 1-1/4 3-1/4
07337 07087 5/8 5/8 1-5/8 3-3/4 07338 07088 5/8 5/8 1-5/8 3-3/4
07348 07098 11/16 5/8 1-5/8 3-3/4 07349 07099 11/16 5/8 1-5/8 3-3/4
07357 07107 3/4 1/2 1-5/8 3-5/8 07360 07110 3/4 3/4 1-5/8 3-7/8
07358 07108 3/4 5/8 1-5/8 3-3/4 07395 07145 7/8 7/8 1-7/8 4-1/8
07359 07109 3/4 3/4 1-5/8 3-7/8 07427 07177 1 1 2 4-1/2
07391 07141 7/8 3/4 1-7/8 4-1/8 07436 07186 1-1/8 1 2 4-1/2
07394 07144 7/8 7/8 1-7/8 4-1/8 07446 07196 1-1/4 1-1/4 2 4-1/2
07420 07170 1 5/8 1-7/8 4 07448 1-5/16 3/4 2 4-1/4
07422 07172 1 3/4 1-7/8 4-1/8 07462 07212 1-1/2 1-1/4 2 4-1/2
07426 07176 1 1 2 4-1/2 07478 07228 2 1-1/4 2 4-1/2
07435 07185 1-1/8 1 2 4-1/2 * 07481 ＊ 07231 2 2 2 5-3/4
07445 07195 1-1/4 1-1/4 2 4-1/2 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ＊Combination Shank
07461 07211 1-1/2 1-1/4 2 4-1/2 ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ■ Coating Codes for HSS
■ Coating Codes for Cobalt Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) ▶ Coated Price Shown in Price List. Call for Availability.
■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. Mill Dia.
Tolerance (inch)
Mill Dia. 0~+.0010 0~+.0015
Tolerance (inch)
The shank of end mills is the same diameter as the cutting portion.
0~+.0010 0~+.0015
The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○
