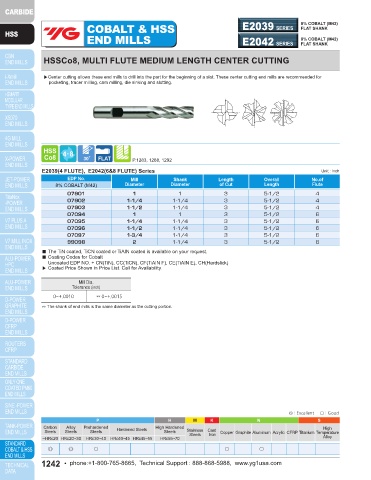

Page 1240 - YG 2019

COBALT & HSS E2039 SERIES 8% COBALT (M42) COBALT & HSS E2040 / E2162 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E2042 SERIES 8% COBALT (M42) END MILLS E1040 / E1162 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8, MULTI FLUTE MEDIUM LENGTH CENTER CUTTING HSSCo8 & HSS, 4&6 FLUTE LONG LENGTH CENTER CUTTING

▶Center cutting allows these end mills to drill into the part for the beginning of a slot. These center cutting end mills are recommended for ▶ Longer flute length than E2039 type, E2042 and allows deeper cutting.
pocketing, tracer milling, cam milling, die sinking and slotting.

P.1283, 1288, 1292 P.1283, 1288, 1292
E2039(4 FLUTE), E2042(6&8 FLUTE) Series Unit : Inch E2040(8% COBALT) , E1040(HSS) Series ■ 4 FLUTE Unit : Inch
EDP No. Mill Shank Length Overall No.of EDP No. Mill Shank Length Overall
8% COBALT (M42) Diameter Diameter of Cut Length Flute 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
07901 1 1 3 5-1/2 4 08297 08047 1/4 3/8 1-1/4 3-1/16
07902 1-1/4 1-1/4 3 5-1/2 4 08301 08051 5/16 3/8 1-3/8 3-1/8
07903 1-1/2 1-1/4 3 5-1/2 4 08305 08055 3/8 3/8 1-1/2 3-1/4
07094 1 1 3 5-1/2 6 08321 08071 1/2 1/2 2 4
07095 1-1/4 1-1/4 3 5-1/2 6 08337 08087 5/8 5/8 2-1/2 4-5/8
07096 1-1/2 1-1/4 3 5-1/2 6 08359 08109 3/4 3/4 3 5-1/4
07097 1-3/4 1-1/4 3 5-1/2 6 08394 08144 7/8 7/8 3-1/2 5-3/4
99098 2 1-1/4 3 5-1/2 8 08426 08176 1 1 4 6-1/2
08445 08195 1-1/4 1-1/4 4 6-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt 08461 08211 1-1/2 1-1/4 4 6-1/2
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. E2162(8% COBALT) , E1162(HSS) Series ■ 6 FLUTE Unit : Inch
EDP No. Mill Shank Length Overall
Mill Dia. 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
Tolerance (inch) 08322 08072 1/2 1/2 2 4
0~+.0010 0~+.0015 08338 08088 5/8 5/8 2-1/2 4-5/8
08360 08110 3/4 3/4 3 5-1/4
The shank of end mills is the same diameter as the cutting portion.
08395 08145 7/8 7/8 3-1/2 5-3/4
08427 08177 1 1 4 6-1/2
08446 08196 1-1/4 1-1/4 4 6-1/2
08462 08212 1-1/2 1-1/4 4 6-1/2
08478 08228 2 1-1/4 4 6-1/2
08485 08235 2 2 4 7-3/4
08489 08239 2 2 6 9-3/4
Combination Shank
Mill Dia. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
Tolerance (inch) ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
0~+.0010 0~+.0015 ■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
The shank of end mills is the same ▶ Coated Price Shown in Price List. Call for Availability.
diameter as the cutting portion.

◎ : Excellent ◯ : Good
P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ○ ○ ○
