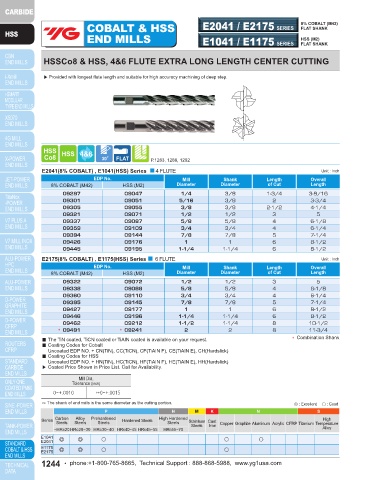

COBALT & HSS E2041 / E2175 SERIES 8% COBALT (M42) COBALT & HSS E2053 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1041 / E1175 SERIES HSS (M2) END MILLS E1053 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK

HSSCo8 & HSS, 4&6 FLUTE EXTRA LONG LENGTH CENTER CUTTING HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH DOUBLE CENTER CUTTING

▶ Provided with longest flute length and suitable for high accuracy machining of deep step. ▶ Series E2053 end mills are the double-end version of E2039 center cutting single-end tools. They are used for slotting, shallow pocketing,
tracer milling or die sinking and similar operation.

P.1283, 1288, 1292 P.1283, 1288, 1292
E2041(8% COBALT) , E1041(HSS) Series 4 FLUTE Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
09297 09047 1/4 3/8 1-3/4 3-9/16 13289 13039 1/8 3/8 3/8 3-1/16
09301 09051 5/16 3/8 2 3-3/4 13290 13040 9/64 3/8 7/16 3-1/8
09305 09055 3/8 3/8 2-1/2 4-1/4 13291 13041 5/32 3/8 7/16 3-1/8
09321 09071 1/2 1/2 3 5 13292 13042 11/64 3/8 1/2 3-1/4
09337 09087 5/8 5/8 4 6-1/8 13293 13043 3/16 3/8 1/2 3-1/4
09359 09109 3/4 3/4 4 6-1/4 13294 13044 13/64 3/8 9/16 3-1/4
09394 09144 7/8 7/8 5 7-1/4 13295 13045 7/32 3/8 9/16 3-1/4
09426 09176 1 1 6 8-1/2 13296 13046 15/64 3/8 5/8 3-3/8
09445 09195 1-1/4 1-1/4 6 8-1/2 13297 13047 1/4 3/8 5/8 3-3/8
E2175(8% COBALT) , E1175(HSS) Series 6 FLUTE Unit : Inch 13298 13048 17/64 3/8 11/16 3-3/8
EDP No. Mill Shank Length Overall 13299 13049 9/32 3/8 11/16 3-3/8
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 13300 13050 19/64 3/8 3/4 3-1/2
13301 13051 5/16 3/8 3/4 3-1/2
09322 09072 1/2 1/2 3 5 13302 13052 21/64 3/8 3/4 3-1/2
09338 09088 5/8 5/8 4 6-1/8 13303 13053 11/32 3/8 3/4 3-1/2
09360 09110 3/4 3/4 4 6-1/4 13304 13054 23/64 3/8 3/4 3-1/2
09395 09145 7/8 7/8 5 7-1/4 13305 13055 3/8 3/8 3/4 3-1/2
09427 09177 1 1 6 8-1/2 13307 13057 25/64 1/2 1 4-1/8
09446 09196 1-1/4 1-1/4 6 8-1/2 13309 13059 13/32 1/2 1 4-1/8
09462 09212 1-1/2 1-1/4 8 10-1/2 13311 13061 27/64 1/2 1 4-1/8
09491 09241 2 2 8 11-3/4 13313 13063 7/16 1/2 1 4-1/8
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. Combination Shank 13315 13065 29/64 1/2 1 4-1/8
■ Coating Codes for Cobalt 13317 13067 15/32 1/2 1 4-1/8
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS ■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ▶ NEXT PAGE
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) ■ Coating Codes for Cobalt
▶ Coated Price Shown in Price List. Call for Availability. Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS
Mill Dia. Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
Tolerance (inch) ▶ Coated Price Shown in Price List. Call for Availability.
0~+.0010 0~+.0015
The shank of end mills is the same diameter as the cutting portion. ◎ : Excellent ◯ : Good
P H M K N S ◎ : Excellent ◯ : Good
Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High P H M K N S
Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High
Steels Steels Steels Steels Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
E1041 ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
E2041 ◎ ◎ ○ ○ ○
E1175 ◎ ◎ ○ ○ ○
E2175 ◎ ◎ ○ ○
