COBALT & HSS COBALT & HSS

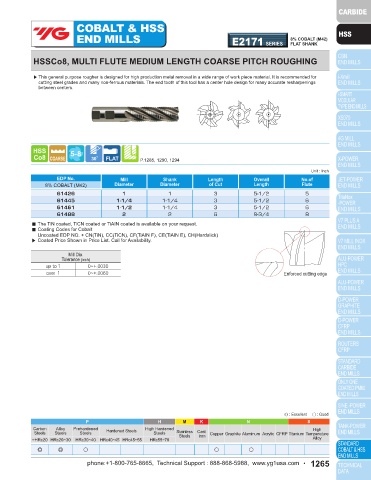

END MILLS E2170 SERIES 8% COBALT (M42) END MILLS E2171 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK

HSSCo8, MULTI FLUTE REGULAR LENGTH COARSE PITCH ROUGHING HSSCo8, MULTI FLUTE MEDIUM LENGTH COARSE PITCH ROUGHING

▶ This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is recommended for ▶ This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is recommended for
cutting steel grades and many non-ferrous materials. cutting steel grades and many non-ferrous materials. The end tooth of this tool has a center hole design for many accurate resharpenings
The end tooth of this tool has a center hole design for many accurate resharpenings between centers. between centers.

P.1285, 1290, 1294 P.1285, 1290, 1294
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall No.of EDP No. Mill Shank Length Overall No.of
8% COBALT (M42) Diameter Diameter of Cut Length Flute 8% COBALT (M42) Diameter Diameter of Cut Length Flute
60297 1/4 3/8 5/8 2-7/16 3 61426 1 1 3 5-1/2 5
60301 5/16 3/8 3/4 2-1/2 3 61445 1-1/4 1-1/4 3 5-1/2 6
60305 3/8 3/8 3/4 2-1/2 4 61461 1-1/2 1-1/4 3 5-1/2 6
60312 7/16 3/8 1 2-11/16 4 61488 2 2 6 9-3/4 8
60321 1/2 1/2 1-1/4 3-1/4 4
60328 9/16 1/2 1-3/8 3-3/8 4 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
60337 5/8 5/8 1-5/8 3-3/4 4 ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
60348 11/16 5/8 1-5/8 3-3/4 4 ▶ Coated Price Shown in Price List. Call for Availability.
60358 3/4 5/8 1-5/8 3-3/4 4
60359 3/4 3/4 1-5/8 3-3/4 4
Mill Dia.
60375 13/16 3/4 1-7/8 4-1/8 4 Tolerance (inch)
60391 7/8 3/4 1-7/8 4-1/8 5 up to 1 0~+.0030
60394 7/8 7/8 1-7/8 4-1/8 5 over 1 0~+.0060 Enforced cutting edge
60409 15/16 7/8 1-7/8 4-1/8 5
60422 1 3/4 2 4-1/4 5
60426 1 1 2 4-1/2 5
60431 1-1/8 3/4 2 4-1/4 6
60435 1-1/8 1 2 4-1/2 6
60439 1-1/4 3/4 2 4-1/4 6
60445 1-1/4 1-1/4 2 4-1/2 6
60449 1-3/8 3/4 2 4-1/4 6
60457 1-1/2 3/4 2 4-1/4 6
60461 1-1/2 1-1/4 2 4-1/2 6
60467 1-3/4 3/4 2 4-1/4 6
60469 1-3/4 1-1/4 2 4-1/2 6
60475 2 3/4 2 4-1/4 6
60477 2 1-1/4 2 4-1/2 6
60480 2 2 2 5-3/4 8
60482 2 2 3 6-3/4 8
60484 2 2 4 7-3/4 8
Combination Shank
Mill Dia.
Tolerance (inch) ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
up to 1 0~+.0030 ■ Coating Codes for Cobalt
over 1 0~+.0060 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Enforced cutting edge ◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
