COBALT & HSS COBALT & HSS

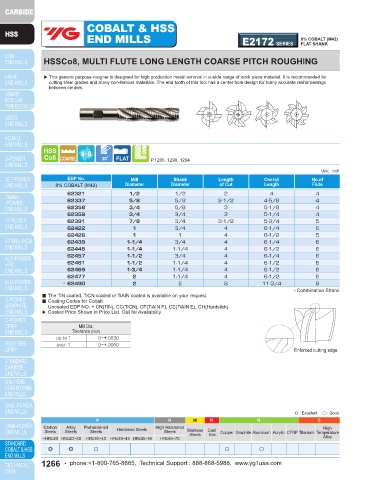

END MILLS E2172 SERIES 8% COBALT (M42) END MILLS E2241 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
HSSCo8, 3FLUTE STUB LENGTH COARSE PITCH ROUGHING
HSSCo8, MULTI FLUTE LONG LENGTH COARSE PITCH ROUGHING
CENTER CUTTING
▶ This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is recommended for ▶ This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is recommended for
cutting steel grades and many non-ferrous materials. The end tooth of this tool has a center hole design for many accurate resharpenings cutting steel grades and many non-ferrous materials. The end tooth of this tool has a center hole design for many accurate resharpenings
between centers. between centers.

P.1285, 1290, 1294 P.1285, 1290, 1294
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall No.of EDP No. Mill Shank Length Overall
8% COBALT (M42) Diameter Diameter of Cut Length Flute 8% COBALT (M42) Diameter Diameter of Cut Length
62321 1/2 1/2 2 4 4 63297 1/4 3/8 1/4 2-1/16
62337 5/8 5/8 2-1/2 4-5/8 4 63305 3/8 3/8 3/8 2-5/32
62358 3/4 5/8 3 5-1/8 4 63321 1/2 1/2 1/2 2-1/2
62359 3/4 3/4 3 5-1/4 4 63337 5/8 5/8 5/8 2-3/4
62391 7/8 3/4 3-1/2 5-3/4 5 63359 3/4 3/4 3/4 2-7/8
62422 1 3/4 4 6-1/4 5 63426 1 1 1 3-1/2
62426 1 1 4 6-1/2 5 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
62439 1-1/4 3/4 4 6-1/4 6 ■ Coating Codes for Cobalt
62445 1-1/4 1-1/4 4 6-1/2 6 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
62457 1-1/2 3/4 4 6-1/4 6 ▶ Coated Price Shown in Price List. Call for Availability.
62461 1-1/2 1-1/4 4 6-1/2 6
62469 1-3/4 1-1/4 4 6-1/2 6 Mill Dia.
62477 2 1-1/4 4 6-1/2 6 Tolerance (inch)
62490 2 2 8 11-3/4 8 up to 1 0~+.0030
over 1 0~+.0060 Enforced cutting edge
Combination Shank
■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia.
Tolerance (inch)
up to 1 0~+.0030
over 1 0~+.0060
Enforced cutting edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
