COBALT & HSS COBALT & HSS
COBALT & HSS
COBALT & HSS

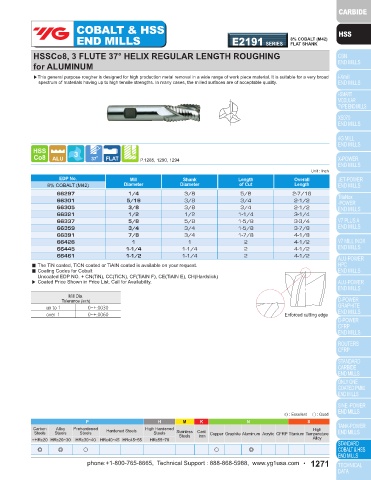

END MILLS E2248 SERIES 8% COBALT (M42) END MILLS E2191 SERIES 8% COBALT (M42)
END MILLS
END MILLS
FLAT SHANK
FLAT SHANK
HSSCo8, 3 FLUTE 37° HELIX REGULAR LENGTH ROUGHING
HSSCo8, MULTI FLUTE REGULAR LENGTH ROUGHING & FINISHING
for ALUMINUM
▶This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad ▶This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad
spectrum of materials having up to high tensile strengths. In many cases, the milled surfaces are of acceptable quality. spectrum of materials having up to high tensile strengths. In many cases, the milled surfaces are of acceptable quality.

P.1285, 1290, 1294 P.1285, 1290, 1294
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall No.of EDP No. Mill Shank Length Overall
8% COBALT (M42) Diameter Diameter of Cut Length Flute 8% COBALT (M42) Diameter Diameter of Cut Length
73297 1/4 3/8 5/8 2-7/16 4 66297 1/4 3/8 5/8 2-7/16
73301 5/16 3/8 3/4 2-1/2 4 66301 5/16 3/8 3/4 2-1/2
73305 3/8 3/8 3/4 2-1/2 4 66305 3/8 3/8 3/4 2-1/2
73312 7/16 3/8 1 2-11/16 4 66321 1/2 1/2 1-1/4 3-1/4
73321 1/2 1/2 1-1/4 3-1/4 4 66337 5/8 5/8 1-5/8 3-3/4
73328 9/16 1/2 1-3/8 3-3/8 4 66359 3/4 3/4 1-5/8 3-7/8
73337 5/8 5/8 1-5/8 3-3/4 4 66391 7/8 3/4 1-7/8 4-1/8
73348 11/16 5/8 1-5/8 3-3/4 4 66426 1 1 2 4-1/2
73358 3/4 5/8 1-5/8 3-3/4 4 66445 1-1/4 1-1/4 2 4-1/2
73359 3/4 3/4 1-5/8 3-3/4 4 66461 1-1/2 1-1/4 2 4-1/2
73391 7/8 3/4 1-7/8 4-1/8 5 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
73394 7/8 7/8 1-7/8 4-1/8 5 ■ Coating Codes for Cobalt
73422 1 3/4 2 4-1/4 5 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
73426 1 1 2 4-1/2 5 ▶ Coated Price Shown in Price List. Call for Availability.
73431 1-1/8 3/4 2 4-1/4 6
73435 1-1/8 1 2 4-1/2 6 Mill Dia.
73439 1-1/4 3/4 2 4-1/4 6 up to 1 Tolerance (inch) 0~+.0030
73445 1-1/4 1-1/4 2 4-1/2 6 Enforced cutting edge
73457 1-1/2 3/4 2 4-1/4 6 over 1 0~+.0060
73461 1-1/2 1-1/4 2 4-1/2 6
73467 1-3/4 3/4 2 4-1/4 6
73469 1-3/4 1-1/4 2 4-1/2 6
73475 2 3/4 2 4-1/4 6
73477 2 1-1/4 2 4-1/2 6
73480 2 2 2 5-3/4 8
73482 2 2 3 6-3/4 8
73484 2 2 4 7-3/4 8
Combination Shank
Mill Dia. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
Tolerance (inch) ■ Coating Codes for Cobalt
＋ .0025 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
＋ .0005 ▶ Coated Price Shown in Price List. Call for Availability.
Enforced cutting edge ◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ◎
