Page 1325 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

HSK HSK

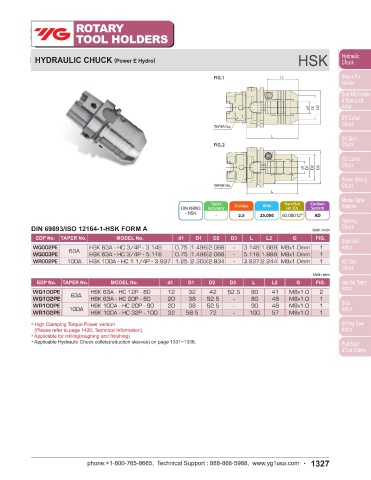

DUAL CONTACT HYDRAULIC CHUCK (SLIM) HYDRAULIC CHUCK (Power E Hydro)

FIG.1 L2
G L2

d1 D1 D2
d1 D1 D2

TAPER No.
L1
TAPER No. L
L
FIG.2

Taper G Value RPM Run-Out Coolant
DIN 69893 Accuracy (at 3D) System d1 D1 D2 D3
- HSK - 2.5 25,000 ≤0.00012" AD

TAPER No.
DIN 69893/ISO 12164-1 HSK FROM A Unit : inch L
EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G
Taper G Value RPM Run-Out Coolant
WQ020 HSK 63A - HC 1/4 - 2.76 0.250 1.024 1.969 2.756 0.945 1.063 M5x0.8mm DIN 69893 Accuracy (at 3D) System
WQ022 HSK 63A - HC 3/8 - 3.15 0.375 1.181 1.969 3.150 1.378 1.260 M8x1.0mm - HSK - 2.5 25,000 ≤0.00012" AD
WQ024 HSK 63A - HC 1/2 - 3.35 0.500 1.260 1.969 3.346 1.575 1.457 M10x1.0mm
WQ026 63A HSK 63A - HC 3/4 - 3.54 0.750 1.654 1.969 3.543 1.890 1.654 M16x1.0mm DIN 69893/ISO 12164-1-HSK FORM A Unit : inch
WQ028 HSK 63A - HC 1" - 4.72 1.000 2.244 2.480 4.724 2.323 1.890 M16x1.0mm EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L2 G FIG.
WQ030 HSK 63A - HC 1 1/4 - 4.92 1.250 2.520 2.953 4.921 2.480 2.165 M16x1.0mm
WR020 HSK 100A - HC 1/4 - 2.95 0.250 1.024 1.969 2.953 1.024 1.063 M5x0.8mm WQ002PE 63A HSK 63A - HC 3/4P - 3.149 0.75 1.496 2.066 - 3.149 1.889 M8x1.0mm 1
WR022 HSK 100A - HC 3/8 - 2.95 0.375 1.181 1.969 3.543 1.654 1.260 M8x1.0mm WQ003PE HSK 63A - HC 3/4P - 5.118 0.75 1.496 2.066 - 5.118 1.889 M8x1.0mm 1
WR024 HSK 100A - HC 1/2 - 3.74 0.500 1.260 1.969 3.740 1.850 1.457 M10x1.0mm WR002PE 100A HSK 100A - HC 1 1/4P - 3.937 1.25 2.303 2.834 - 3.937 2.244 M8x1.0mm 1
WR026 100A HSK 100A - HC 3/4 - 4.13 0.750 1.654 1.969 4.134 2.323 1.654 M16x1.0mm
WR028 HSK 100A - HC 1" - 4.33 1.000 2.244 2.480 4.331 2.441 1.890 M16x1.0mm Unit : mm
WR032 HSK 100A - HC 1 1/4 - 4.33 1.250 2.520 2.953 4.331 2.441 2.165 M16x1.0mm EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L2 G FIG.
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338. WQ100PE 63A HSK 63A - HC 12P - 80 12 32 42 52.5 80 41 M8x1.0 2
WQ102PE HSK 63A - HC 20P - 80 20 38 52.5 - 80 48 M8x1.0 1
WR100PE 100A HSK 100A - HC 20P - 90 20 38 52.5 - 90 48 M8x1.0 1
WR102PE HSK 100A - HC 32P - 100 32 58.5 72 - 100 57 M8x1.0 1
* High Clamping Torque Power version
(Please refer to page 1420, Technical Information)
* Applicable for milling(roughing and finishing)
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
