Page 1327 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

HSK HSK

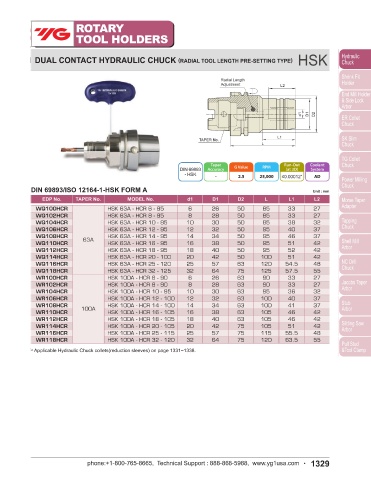

DUAL CONTACT HYDRAULIC CHUCK (SHORT & RIGID) DUAL CONTACT HYDRAULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE)

G L2 Radial Length
Adjustment L2

d1 D1 D2
d1 D1 D2

L1
TAPER No.
L
TAPER No. L
Taper Run-Out Coolant Taper Run-Out Coolant
DIN 69893 Accuracy G Value RPM (at 3D) System DIN 69893 Accuracy G Value RPM (at 3D) System
- HSK - 2.5 25,000 ≤0.00012" AD - HSK - 2.5 25,000 ≤0.00012" AD

DIN 69893/ISO 12164-1-HSK FORM A Unit : mm DIN 69893/ISO 12164-1-HSK FORM A Unit : mm
EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2
WQ100SNR HSK 63A - HC 12S - 80 12 32 42 80 37 M8x1.0 WQ100HCR HSK 63A - HCR 6 - 85 6 26 50 85 33 27
WQ102SNR 63A HSK 63A - HC 20S - 80 20 38 52.5 80 42 M8x1.0 WQ102HCR HSK 63A - HCR 8 - 85 8 28 50 85 33 27
WR100SNR HSK 100A - HC 12S - 85 12 32 42 85 35 M8x1.0 WQ104HCR HSK 63A - HCR 10 - 85 10 30 50 85 38 32
WR102SNR 100A HSK 100A - HC 20S - 90 20 38 52.5 90 42 M8x1.0 WQ106HCR HSK 63A - HCR 12 - 95 12 32 50 95 40 37
WQ108HCR HSK 63A - HCR 14 - 95 14 34 50 95 46 37
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338. WQ110HCR 63A HSK 63A - HCR 16 - 95 16 38 50 95 51 42
WQ112HCR HSK 63A - HCR 18 - 95 18 40 50 95 52 42
WQ114HCR HSK 63A - HCR 20 - 100 20 42 50 100 51 42
WQ116HCR HSK 63A - HCR 25 - 120 25 57 63 120 54.5 48
WQ118HCR HSK 63A - HCR 32 - 125 32 64 75 125 57.5 55
WR100HCR HSK 100A - HCR 6 - 90 6 26 63 90 33 27
WR102HCR HSK 100A - HCR 8 - 90 8 28 63 90 33 27
WR104HCR HSK 100A - HCR 10 - 95 10 30 63 95 36 32
WR106HCR HSK 100A - HCR 12 - 100 12 32 63 100 40 37
WR108HCR HSK 100A - HCR 14 - 100 14 34 63 100 41 37
WR110HCR 100A HSK 100A - HCR 16 - 105 16 38 63 105 46 42
WR112HCR HSK 100A - HCR 18 - 105 18 40 63 105 46 42
WR114HCR HSK 100A - HCR 20 - 105 20 42 75 105 51 42
WR116HCR HSK 100A - HCR 25 - 115 25 57 75 115 55.5 48
WR118HCR HSK 100A - HCR 32 - 120 32 64 75 120 63.5 55
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
